BS 7211 Cables
Thermosetting insulated,
single-core, sheathed cables
Application and Description
These single core cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

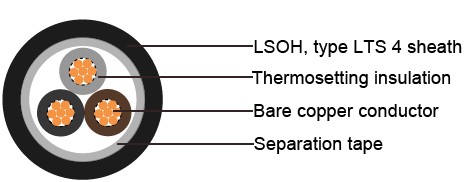

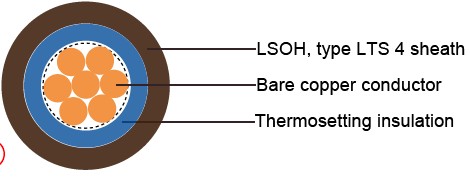

Cable Construction
Fine bare copper strands
-Strands to IEC 60228 Cl-1 or 2
-Thermosetting core insulation type EI5 or GP 8
-Core identification: brown or blue
- LSOH sheath, type LTS 4
Technical Characteristics
Working voltage: 450/750v
Test voltage: 2500 volts
Flexing bending radius: 15 x Ø
Static bending radius: 10 x Ø
Flexing temperature: -25º C to +90º C
Short circuit temperature: +250º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area |
Nominal thickness of insulation |
Nominal thickness of sheath |
Nominal overall diameter |
Nominal Weight |
Minimum insulation resistance at 90 °C |
|
# x mm² |
mm |
mm |
mm |
kg/km |
MΩ·km |
17 |
1 × 1.0 |
0.7 |
0.8 |
3.9-4.8 |
26 |
0.011 |
17(7/26) |
1 × 1.0 |
0.7 |
0.8 |
4-4.9 |
31 |
0.011 |
16 |
1 × 1.5 |
0.7 |
0.8 |
4.2-5 |
34 |
0.011 |
16(7/24) |
1 × 1.5 |
0.7 |
0.8 |
4.3-5.2 |
39 |
0.010 |
14 |
1 × 2.5 |
0.7 |
0.8 |
4.6-5.5 |
46 |
0.0092 |
14(7/22) |
1 × 2.5 |
0.7 |
0.8 |
4.7-5.6 |
51 |
0.0084 |
12 |
1 × 4 |
0.7 |
0.8 |
5.0-6.0 |
65 |
0.0077 |
12(7/20) |
1 × 4 |
0.7 |
0.9 |
5.3-6.4 |
72 |
0.0070 |
10 |
1 × 6 |
0.7 |
0.9 |
5.7-6.8 |
90 |
0.0065 |
10(7/18) |
1 × 6 |
0.7 |
0.9 |
5.9-7.1 |
99 |
0.0059 |
8(7/16) |
1 × 10 |
0.7 |
0.9 |
6.7-8.1 |
141 |
0.0047 |
6(7/14) |
1 × 16 |
0.7 |
0.9 |
7.6-9.2 |
205 |
0.0039 |
4(7/12) |
1 × 25 |
0.9 |
1.0 |
9.4-11.4 |
318 |
0.0039 |
2(7/10) |
1 × 35 |
0.9 |
1.1 |
10.6-12.8 |
482 |
0.0034 |
|
