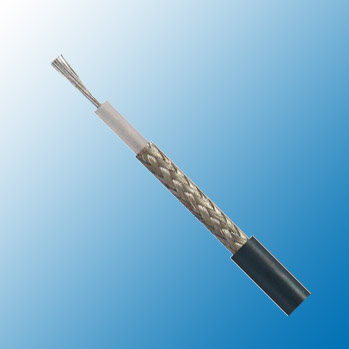

Construction
Inner conductor |
Silver plated annealed copper |
7 x 0.102 mm |
Dielectric |
PFA |
Φ0.86 mm |
Outer conductor |
Silver plated annealed copper |
0.08 mm |
Shield coverage |
|
95% |
Sheath |
PFA |
Φ1.48 mm |
Electrical & Mechanical Characteristics
Impedance |
50±3 Ohm |
Nominal capacitance |
96 pF/m |
Velocity of propagation |
70% |
Insulation resistance |
- Mohm.Km |
Inner conductor resistance |
- Ohm/Km |
Outer conductor resistance |
- Ohm/Km |
Operating temperature range |
-55°C - +180 °C |
Test insulation voltage |
1000V |
Attenuation
Frequency (MHz) |
Attenuation (dB/100 m) |
Max. Attenuation(dB/100ft) |
| 1000 |
155 |
47.2 |
2000 |
255 |
77.7 |
3000 |
360 |
109.7 |
4000 |
410 |
125 |
5000 |
460 |
140.2 |
6000 |
550 |
167.6 |
