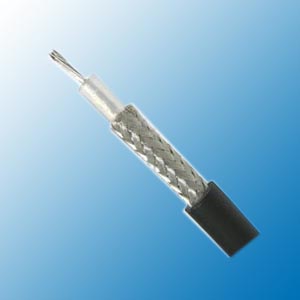

RG 58 TC

Construction

Inner conductor

Tinned copper

19 x 0.18 mm

Dielectric

Low density PE

Φ2.95 ± 0.10 mm

Outer conductor (shield)

Tinned copper

140 x 0.10 mm

Shield coverage

93%

Sheath

PVC or LSZH

Φ5.00 ± 0.10 mm

Electrical & Mechanical Characteristics

Impedance

50±3 Ohm

Nominal capacitance

100 pF/m

Velocity of propagation

66%

Insulation resistance

>2000 Mohm.Km

Inner conductor resistance

37.5 Ohm/Km

Outer conductor resistance

17 Ohm/Km

Operating temperature range

 -30 °C - +70 °C

Copper weight

14.9 Kg/Km

Cable weight (approx.)

37.1 Kg/Km

Screening effectiveness

>55 dB

Attenuation

Frequency(MHz)

Attenuation (dB/100 m)

Attenuation (dB/100 ft)

50 9.7 2.96

100

13.9

4.24

200

20.4

6.22

400

30

9.15

500

34.2

10.43

600

37.9

11.55

860

46.9

14.3

1000

51.8

15.79

Return Loss

30-300 MHz

>27dB

300-600 MHz

>23dB

600-900 MHz

>22dB
