 Fiber Optic Cables

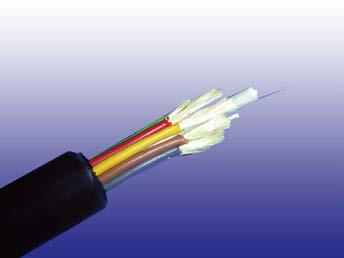

Breakout Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description
The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.
Construction
Physical Properties
Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Nominal Outer Diameter(in) |
Maximum Pulling Load |
Installation(N/Ib) |
In Service(N/Ib) |
2 |
50．0 |
33．56 |
5．5 |
0．217 |
1200/270 |
490/100 |
6 |
110．0 |
73．83 |
12．5 |
0．493 |
2000/450 |
800/180 |
12 |
160．0 |
107．38 |
13．0 |
0．512 |
3515/790 |
1200/270 |
24 |
230．0 |
154．36 |
15．5 |
0．611 |
5470/1230 |
2000/450 |
Mechanical Properities
| Minimum Bending Radius: |
|
Maximum Compressive Load: |
3000N for unarmoured |
| Under installation: |
20×OD |
|
5000N for armoured |
| During operation |
10×OD for unarmoured cables |
Repeated Impact: |
2.9 N.m (J) 3×2 impacts |
| |
10×OD for unarmoured cables |
Twist (Torsion): |
180×10 times, 125×OD |
| Temperature Range: |
|
Cyclic Flexing: |
25 cycles for armoured cables. |
| Operating Temperature Range: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Storage Temperature Range: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistance: |
1750N/cm (1000lb/in) |
Fiber Compliance
Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Safety Compliance
General Purpose Grade |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Features
• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
|
