International Municipal Signal Association(IMSA Series)

IMSA 19-1(Traffic Signal Cable)

Application and Description

These cables are suitable for outdoor or indoor use in traffic signal, traffic control systems, fire alarm systems, underground conduit and aerial use with messenger. Rated for 600 Volts 75°C wet or dry locations.

Cable Construction

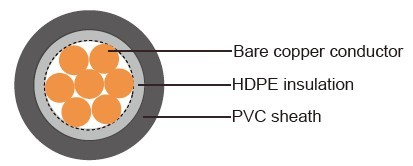

IMSA 19-1 Traffic Signal Cable

- Conductor: Solid bare copper per ASTM B-3 or stranded bare copper per ASTM B-8, & B-174
- Insulation: High density polyethylene (HDPE)
- Sheath: Black polyvinyl chloride (PVC)

Color Code

Conductor
No.
Insulation Color Stripe
Color
Conductor
No.
Insulation Color Stripe
Color
1 Black 14 Green White
2 White 15 Blue White
3 Red 16 Black Red
4 Green 17 White Red
5 Orange 18 Orange Red
6 Blue 19 Blue Red
7 White Black 20 Red Green
8 Red Black 21 Orange Green
9 Green Black 22 Black
10 Orange Black 23 White
11 Blue Black 24 Red
12 Black White 25 Green
13 Red White

Temperature Rating

75°C

Voltage Rating

600 V

Cable Parameter

AWG No.
of
Conductor
Solid or Stranded Insulation Thickness Sheath thickness Overall Diameter Cable Weight
inches mm inches mm inches mm Lbs./ Kft Kg/Km
14 2 solid 0.025 0.64 0.045 1.14 0.325 8.26 58 86
14 2 7strand 0.025 0.64 0.045 1.14 0.341 8.66 63 94
14 3 solid 0.025 0.64 0.045 1.14 0.342 8.69 75 112
14 3 7strand 0.025 0.64 0.045 1.14 0.357 9.07 81 121
14 4 solid 0.025 0.64 0.045 1.14 0.372 9.45 94 140
14 4 7strand 0.025 0.64 0.045 1.14 0.389 9.89 98 146
14 5 solid 0.025 0.64 0.045 1.14 0.406 10.31 113 168
14 5 7strand 0.025 0.64 0.045 1.14 0.42 10.67 113 168
14 7 solid 0.025 0.64 0.045 1.14 0.44 11.18 146 217
14 7 7strand 0.025 0.64 0.045 1.14 0.464 11.79 154 229
14 9 solid 0.025 0.64 0.045 1.14 0.511 12.98 186 277
14 9 7strand 0.025 0.64 0.06 1.52 0.571 14.50 212 315
14 10 solid 0.025 0.64 0.06 1.52 0.586 14.88 220 327
14 10 7strand 0.025 0.64 0.06 1.52 0.586 14.88 227 338
14 11 7strand 0.025 0.64 0.06 1.52 0.618 15.70 250 372
14 12 solid 0.025 0.64 0.06 1.52 0.603 15.31 254 378
14 12 7strand 0.025 0.64 0.06 1.52 0.636 16.15 267 397
14 14 7strand 0.025 0.64 0.06 1.52 0.668 16.97 304 452
14 15 solid 0.025 0.64 0.06 1.52 0.667 16.94 311 463
14 15 7strand 0.025 0.64 0.06 1.52 0.704 17.88 328 488
14 16 solid 0.025 0.64 0.06 1.52 0.667 16.94 325 484
14 16 7strand 0.025 0.64 0.06 1.52 0.704 17.88 341 507
14 19 solid 0.025 0.64 0.06 1.52 0.701 17.81 375 558
14 19 7strand 0.025 0.64 0.06 1.52 0.741 18.82 393 585
14 20 solid 0.025 0.64 0.06 1.52 0.737 18.72 395 588
14 20 7strand 0.025 0.64 0.06 1.52 0.779 19.79 415 617
14 21 7strand 0.025 0.64 0.06 1.52 0.779 19.79 432 643
14 25 solid 0.025 0.64 0.06 1.52 0.796 20.22 478 711
14 25 7strand 0.025 0.64 0.08 1.52 0.918 23.32 544 809
12 2 solid 0.03 0.76 0.045 1.14 0.382 9.70 58 86
12 2 7strand 0.03 0.76 0.045 1.14 0.397 10.08 87 129
12 3 solid 0.03 0.76 0.045 1.14 0.398 10.11 108 161
12 3 7strand 0.03 0.76 0.045 1.14 0.42 10.67 113 168
12 4 solid 0.03 0.76 0.045 1.14 0.439 11.15 135 201
12 4 7strand 0.03 0.76 0.045 1.14 0.459 11.66 141 210
12 5 solid 0.03 0.76 0.045 1.14 0.48 12.19 163 243
12 5 7strand 0.03 0.76 0.045 1.14 0.503 12.78 172 256
12 7 solid 0.03 0.76 0.06 1.52 0.555 14.10 237 353
12 7 7strand 0.03 0.76 0.06 1.52 0.579 14.71 244 363
12 9 solid 0.03 0.76 0.06 1.52 0.64 16.26 281 418
12 9 7strand 0.03 0.76 0.06 1.52 0.673 17.09 310 461
12 10 7strand 0.03 0.76 0.06 1.52 0.726 18.44 338 503
12 12 solid 0.03 0.76 0.06 1.52 0.711 18.06 372 553
12 12 7strand 0.03 0.76 0.06 1.52 0.753 19.13 393 585
12 16 solid 0.03 0.76 0.06 1.52 0.793 20.14 449 668
12 19 7strand 0.03 0.76 0.08 2.03 0.918 23.32 625 930
12 20 solid 0.03 0.76 0.08 2.03 0.922 23.42 631 939
10 2 solid 0.031 0.79 0.045 1.14 0.421 10.70 110 164
10 2 7strand 0.031 0.79 0.045 1.14 0.443 11.25 118 176
10 3 solid 0.031 0.79 0.045 1.14 0.445 11.30 150 223
10 3 7strand 0.031 0.79 0.045 1.14 0.469 11.91 155 231
10 4 7strand 0.031 0.79 0.06 1.52 0.542 13.77 216 321
10 5 7strand 0.031 0.79 0.06 1.52 0.596 15.14 263 391
