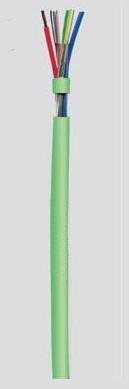

E- BUS ,4-core FRNC and 4-pair PVC
Application
For computer-based patient calling systems, easy and quick installation is an important factor. Therefore a 6-conductor bus cable is used to connect the components of the calling system. This cable is used for the transmission of power, data, and voice.
|
|
| Type/Area of Application |
Fixed Installation, Indoor |
Fixed Installation, Indoor |
| Construction du câble |
2x1.5 mm2 (stranded) + 2x2x0.60 mm2 (solid) |
2x1.5 mm2 (stranded) + 2x2x0.60 mm2 (solid) |
| Inner Conductor, Power: |
Copper, bare |
Copper, bare |
| Inner Conductor, Data: |
Copper, bare |
Copper, bare |
| Chef d'orchestre d'isolation, Puissance: |
PVC |
PVC |
| Chef d'orchestre d'isolation, Data: |
PE |
PE |
| Couleurs d'orchestre, Puissance: |
red, blue |
red, blue |
| Couleurs d'orchestre, Data: |
green/yellow, grey/pink |
green/yellow, grey/pink |
| Echouage Element, Data: |
Double conductor |
Double conductor |
| Shielding, Data Pair: |
PP foil + Aluminum-lined foil + PP foil |
PP foil + Aluminum-lined foil + PP foil |
| Drain Wire: |
yes |
yes |
| Outer Jacket Material: |
PVC |
FRNC |
| Outer Cable Diameter: |
8.0 mm ± 0.3 mm |
8.0 mm ± 0.3 mm |
| Outer Jacket Color: |
Green similar to RAL 6001 |
Green similar to RAL 6001 |
|
|
| Insulation Resistance: |
0.02 GOhm x km min. |
0.02 GOhm x km min. |
| Mutual Capacitance: |
70.0 nF/km nom. |
70.0 nF/km nom. |
| Tension de test: |
2.0 kV |
2.0 kV |
|
| Poids: |
approximately 90.0 kg/km |
approximately 93.0 kg/km |
| Min. Bending Radius (Laying): |
120.0 mm |
120.0 mm |
| Operating Temp.Range, min.: |
- 30 °C |
- 30 °C |
| Operating Temp.Range, max.: |
+80 °C |
+80 °C |
| Caloric Load, approx. value: |
1.01 MJ/m |
0.86 MJ/m |
| Copper Value: |
53.0 kg/km |
53.0 kg/km |
|
|
|
|
 |
|
