EN 50264 Medium Wall Power & Control Cable

FIREROL FRL-MW-1SU/FRL-MW-3SU

0.6/1 or 1.8/3 kV - single core

EN 50264 Medium Wall Power & Control Cable

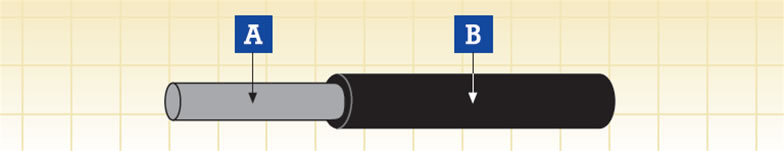

                                                    A. Conductor                    B. Insulation

Aplicativo

-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

-Used in control,l auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

Construção

Conductor
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5

Isolamento
LSZH elastomeric compound as defined in EN 50264-1 (EI 106 to EI 109)

Electrical & Propriedades Mecânicas

Nominal Voltage 0.6/1 kV or 1.8/3 kV
Maximum Conductor Temperature +90 deg (fixed installation)
Minimum Permissible Ambient Temperature -25/-40 deg (fixed installation)
Bending Radius 3 x Overall Diameter (D<12mm);
  4 x Overall Diameter (D>12mm)

Chemical & Environmental Properties

EN 60684-2 No fluorine
EN 50305; EN 60811-2-1 Resistance to oil & fuel
EN 50305 Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2 Hazard levels HL1, HL2/HL3, HL4
DIN 5510-2 Protection level 1/2/3/4
BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101 FO

Fire Performance in general

EN 50265-2-1; IEC 60332-1; BS 4066-1 Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3C; Fire propagation of bunched wires and cables;
VDE 0472 Teil 804; BS 4066-3; NFC 32070
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 Smoke density
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 Corrosivity of gases (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Toxicity index
NFF 16101; NFF 63808; BS6853 Smoke index

FRL-MW-1SU 0.6/1 kV

Nominal área da seção transversal

(a)

Maestro diâmetro (a)

MIN. Espessura média de isolamento

Globalmente diâmetro MIN.(mm)

Globalmente diâmetro MAX.(mm)

Peso

Maestro resistência em 20°C

Resistência de isolamento em 20°C

Resistência de isolamento em 90°C

max

min

min

mm2

mm

mm

mm

mm

Kg/km

Ω/km

MΩ·km

MΩ·km

1.0

1.25

0.6

2.4

2.8

10

20

11.4

0.114

1.5

1.5

0.7

2.8

3.3

20

13.7

11.0

0.110

2.5

1.95

0.7

3.2

3.8

30

8.21

9.1

0.091

4

2.5

0.7

3.8

4.4

50

5.09

7.5

0.075

6

3.0

0.7

4.2

5.0

60

3.39

6.5

0.065

10

3.9

0.7

5.1

5.9

110

1.95

5.2

0.052

16

5.0

0.7

6.1

7.2

160

1.24

4.2

0.042

25

6.4

0.9

7.8

9.1

240

0.795

4.1

0.041

35

7.7

0.9

9.0

10.6

330

0.565

3.5

0.035

50

9.2

1.0

10.6

12.4

460

0.393

3.3

0.033

70

11.0

1.1

12.5

14.6

660

0.277

3.0

0.030

95

12.5

1.1

13.9

16.3

860

0.210

2.7

0.027

120

14.2

1.2

15.7

18.4

1080

0.164

2.7

0.027

150

15.8

1.4

17.6

20.6

1370

0.132

2.7

0.027

185

17.5

1.6

19.6

22.9

1690

0.108

2.6

0.026

240

20.1

1.7

22.2

26.0

2230

0.0817

2.6

0.026

300

22.5

1.8

24.6

28.8

2780

0.0654

2.4

0.024

400

25.8

2.0

28.1

32.9

3740

0.0495

2.4

0.024

FRL-MW-3SU 1.8/3 kV

Nominal área da seção transversal

(a)

Maestro diâmetro (a)

MIN. Espessura média de isolamento

Globalmente diâmetro MIN.(mm)

Globalmente diâmetro MAX.(mm)

Peso

Maestro resistência em 20°C

Resistência de isolamento em 20°C

Resistência de isolamento em 90°C

max

min

min

mm2

mm

mm

mm

mm

Kg/km

Ω/km

MΩ·km

MΩ·km

1.5

1.5

2.0

5.3

6.2

50

13.7

21.0

0.210

2.5

1.95

2.0

5.7

6.7

60

8.21

18.0

0.180

4

2.5

2.0

6.2

7.3

80

5.09

15.5

0.155

6

3.0

2.0

6.7

7.8

100

3.39

13.7

0.137

10

3.9

2.0

7.5

8.8

150

1.95

11.5

0.115

16

5.0

2.0

8.6

10.0

220

1.24

9.5

0.095

25

6.4

2.0

9.9

11.6

290

0.795

7.9

0.079

35

7.7

2.0

11.1

13.0

390

0.565

6.8

0.068

50

9.2

2.0

12.5

14.6

530

0.393

5.9

0.059

70

11.0

2.0

14.2

16.6

720

0.277

5.0

0.050

95

12.5

2.2

16.0

18.7

940

0.210

4.5

0.045

120

14.2

2.2

17.6

20.6

1160

0.164

4.0

0.040

150

15.8

2.2

19.1

22.3

1440

0.132

3.7

0.037

185

17.5

2.4

20.9

24.4

1760

0.108

3.4

0.034

240

20.1

2.4

23.7

27.5

2350

0.0817

3.0

0.030

300

22.5

2.4

25.6

30.1

2820

0.0654

2.7

0.027

400

25.8

2.6

29.2

34.2

3730

0.0495

2.4

0.024

(a)= For information,indicative only
