EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05M-SW-OS
300/500 V - multi - core screened with Standard Wall sheath

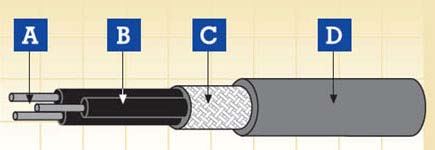

A.Conductor B.Insulation C.Screen D.Sheath
Aplicativo
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construção
Conductor
Tinned annealed copper wires as defined in EN 50306-2
Isolamento
LSZH special compound
Overal ecrã
Tinned annealed copper wires
Bainha exterior
LSZH special compound as defined in EN 50264-1 (S2. EM 101 - EM 104)
Electrical & Propriedades Mecânicas
| Nominal Voltage |
300/500 V |
| Maximum Conductor Temperature |
+90/+105 deg (fixed installation) |
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05M-SW-OS 300/500 V
Número de núcleos e nominal da secção transversa |
Espessura mínima de bainha, em qualquer ponto |
Globalmente diâmetro |
Peso |
(mm2) |
(mm) |
min. (mm) |
max. (mm) |
(kg/km) |
2 x 0.5 |
0.42 |
4.1 |
5.1 |
30 |
3 x 0.5 |
0.42 |
4.3 |
5.3 |
40 |
4 x 0.5 |
0.42 |
4.7 |
5.7 |
50 |
6 x 0.5 |
0.42 |
5.5 |
6.5 |
70 |
8 x 0.5 |
0.42 |
6.0 |
7.0 |
90 |
|
|
|
|
|
2 x 0.75 |
0.42 |
4.5 |
5.5 |
40 |
3 x 0.75 |
0.42 |
4.7 |
5.7 |
50 |
4 x 0.75 |
0.42 |
5.2 |
6.2 |
60 |
6 x 0.75 |
0.42 |
6.1 |
7.1 |
90 |
8 x 0.75 |
0.42 |
6.6 |
7.6 |
110 |
|
|
|
|
|
2 x 1.0 |
0.42 |
4.7 |
5.7 |
50 |
3 x 1.0 |
0.42 |
5.1 |
6.0 |
60 |
4 x 1.0 |
0.42 |
5.5 |
6.5 |
80 |
6 x 1.0 |
0.42 |
6.6 |
7.6 |
110 |
8 x 1.0 |
0.56 |
7.7 |
8.7 |
140 |
|
|
|
|
|
2 x 1.5 |
0.42 |
5.7 |
6.7 |
70 |
3 x 1.5 |
0.42 |
6.0 |
7.0 |
90 |
4 x 1.5 |
0.42 |
6.6 |
7.6 |
100 |
6 x 1.5 |
0.56 |
8.3 |
9.3 |
160 |
8 x 1.5 |
0.56 |
8.9 |
10.1 |
200 |
|
|
|
|
|
2 x 2.5 |
0.56 |
7.3 |
8.3 |
100 |
3 x 2.5 |
0.56 |
7.7 |
8.7 |
130 |
4 x 2.5 |
0.56 |
8.4 |
9.6 |
160 |
|
