 Cabo de Fibra óptica
Breakout Cable
Aplicativo
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Descrição

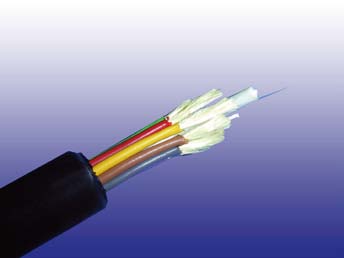

The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.

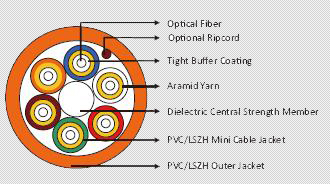

Construção
Propriedades Físicas
Fibra Count |
Peso nominal(kg/km) |
Peso nominal(lb/kft) |
Diâmetro exterior nominal(mm) |
Diâmetro exterior nominal(in) |
Máxima de tracção |
Instalação(N/Ib) |
Em Serviço(N/Ib) |
2 |
50．0 |
33．56 |
5．5 |
0．217 |
1200/270 |
490/100 |
6 |
110．0 |
73．83 |
12．5 |
0．493 |
2000/450 |
800/180 |
12 |
160．0 |
107．38 |
13．0 |
0．512 |
3515/790 |
1200/270 |
24 |
230．0 |
154．36 |
15．5 |
0．611 |
5470/1230 |
2000/450 |
Mecânica Properities
| Minimum Bending Radius: |
|
Maximum Compressive Load: |
3000N for unarmoured |
| Under installation: |
20×OD |
|
5000N for armoured |
| During operation |
10×OD for unarmoured cables |
Repeated Impact: |
2.9 N.m (J) 3×2 impacts |
| |
10×OD for unarmoured cables |
Twist (Torsion): |
180×10 times, 125×OD |
| Temperature Range: |
|
Cyclic Flexing: |
25 cycles for armoured cables. |
| Operating Temperature Range: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Storage Temperature Range: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistance: |
1750N/cm (1000lb/in) |
Fibra Cumprimento
Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Segurança Conformidade
General Purpose Grade |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Recursos
• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
|
