300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Alarm Cables

FFX200P 05mROZ1-R (CU/MICA+XLPE/OSCR/LSZH 300/500V Class 2 )

300/500V Mica+XLPE Insulated & LSZH Sheathed Fire Alarm Cables

Application

The cables are designed, manufactured and tested as data transmission cables for emergency services. These are primarily intended for for indoor instrumentation and control cabling, electrically noisy environments and fire alarm systems in office buildings when high frequency signal transmission has to be assured in the event of a fire.

Standards

Basic design to BS 7629-1

Fire Performance

Circuit Integrity

IEC 60331-21; BS 6387 CWZ; DIN VDE 0472-814(FE180);
CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)

System circuit integrity

DIN 4102-12, E30 depending on lay system

Flame Retardance (Single Vertical
Wire Test)

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2;
VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Halogen Free

IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission

IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*

No Toxic gases

NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

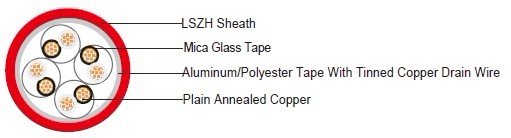

Cable Construction

Conductors: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Mica glass tape covered by extruded cross-linked XLPE compound or cross-linked
compound type EI5 as per BS 7655: section 5.1.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together. In cables with 8 pairs or more, 4 pairs are assembled to form a
bunch, the bunches are then cabled together.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

Colour Code

Insulation Colour: According to IEC 60189-2 (other colour code on request).
Sheath Colour: Colour red (other colours on request).

Physical And Thermal Properties

Temperature range during operation (fixed state): -30°C - +90°C
Temperature range during installation (mobile state): -20°C - +50°C
Minimum bending radius: 8 x Overall Diameter

Construction Parameters

Cable Code

Nominal Insulation Thickness

Nominal Sheath Thickness

Nominal Overall Diameter

Approx.
Weight

mm2

mm

mm

mm

kg/km

1 Pairs

1x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

0.8

7.8

64

1x2x1 stranded FFX200P 05mROZ1-R (PH30)

0.6

0.9

8.4

73

1x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

0.9

9.3

87

2 Pairs

2x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

0.9

10.7

118

2x2x1stranded FFX200P 05mROZ1-R (PH30)

0.6

1.0

11.5

136

2x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

1.0

13.0

165

5 Pairs

5x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.1

14.8

218

5x2x1 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.2

15.7

266

5x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

1.3

18.1

342

10 Pairs

10x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.3

20.1

380

10x2x1 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.4

21.3

455

10x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

1.5

24.8

606

15 Pairs

15x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.4

24.9

535

15x2x1 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.5

26.5

646

15x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

1.6

30.8

862

20 Pairs

20x2x0.75 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.5

28.2

680

20x2x1 stranded FFX200P 05mROZ1-R (PH30)

0.6

1.6

30.2

839

20x2x1.5 stranded FFX200P 05mROZ1-R (PH30)

0.7

1.8

34.9

1121
