600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)

FGD300 1VVMAV-R (CU/PVC/PVC/AWA/PVC 600/1000V Class 2)
VDE Code: NYRY

Flame Retardant Power & Control Cables

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

Standards

Basic design to to IEC 60502-1

Fire Performance

Flame Retardance (Single Vertical Wire Test) IEC 60332-1

Voltage Rating

600/1000V

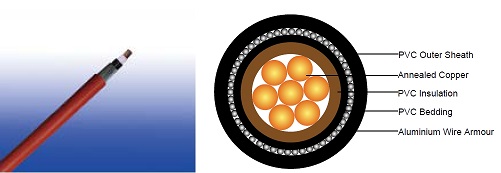

Cable Construction

Conductor Annealed copper wire, stranded according to BS EN 60228 class 2.
Insulation PVC/A according to IEC 60502-1.
Inner Covering Extruded PVC or polymeric compound.
Armouring Aluminium wire
Outer Sheath Extruded PVC Type ST1/ST2 according to IEC 60502-1.
Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

Colour Code

Insulation Colour Brown or blue, Other colours can be offered upon request.
Sheath Colour Black, other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC) 70°C
Maximum short circuit temperature (5 Seconds) 160°C(≤300 mm²); 140°C(>300 mm²)

Minimum bending radius
  Circular copper conductors 6 x Overall Diameter
  Shaped copper conductors 8 x Overall Diameter

Construction Parameters

Conductor FGD300 1VVMAV-R
No. of Cores xCross Section Class of Conductor Nominal Insulation Thickness Nominal Inner
Covering
Thickness
Nominal Armour Wire
Diameter
Nominal Sheath Thickness Approx. Overall
Diameter
Approx. Weight
No.xmm2   mm mm mm mm mm kg/km
1x4.0 2 1.0 1.0 0.8 1.8 11.5 213
1x6.0 2 1.0 1.0 0.8 1.8 12.0 247
1x10 2 1.0 1.0 0.8 1.8 12.8 310
1x16 2 1.0 1.0 0.8 1.8 13.7 394
1x25 2 1.2 1.0 0.8 1.8 15.2 534
1x35 2 1.2 1.0 1.25 1.8 17.2 713
1x50 2 1.4 1.0 1.25 1.8 18.9 893
1x70 2 1.4 1.0 1.25 1.8 20.3 1158
1x95 2 1.6 1.0 1.6 1.8 23.0 1558
1x120 2 1.6 1.0 1.6 1.8 24.4 1863
1x150 2 1.8 1.0 1.6 1.8 26.2 2214
1x185 2 2.0 1.0 1.6 1.9 28.2 2697
1x240 2 2.2 1.0 1.6 1.9 31.0 3402
1x300 2 2.4 1.0 2.0 2.1 34.4 4282
1x400 2 2.6 1.2 2.0 2.2 38.6 5360
1x500 2 2.8 1.2 2.0 2.3 41.8 6583
1x630 2 2.8 1.2 2.5 2.4 46.2 8401
1x800 2 2.8 1.4 2.5 2.6 50.5 10515
1x1000 2 3.0 1.4 2.5 2.7 55.0 12968

ELECTRICAL PROPERTIES

Conductor Operating Temperature 70°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp) BS 7671: 2008 table 4D3A

Conductor cross-sectional

area
Reference
Method C (clipped
direct)
Reference Method F (in free air or on a perforated cable tray, horizontal or vertical)
Touching Touching Spaced by on cable diameter
2
cables,
singlephase
a.c. or
d.c. flat
3 or 4
cables,
threephase
a.c. flat
2
cables,
singlephase
a.c. or
d.c. flat
3 cables,
threephase
a.c. flat
3 cables
threephase
a.c.
trefoil
2 cables, d.c. 2 cables, single-phase
a.c.
3 or 4
cables,
three-phase
a.c.
Horizontal Vertical Horizontal Vertical Horizontal Vertical
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
50 193 179 205 189 181 229 216 229 217 230 212
70 245 225 259 238 231 294 279 287 272 286 263
95 296 269 313 285 280 357 340 349 332 338 313
120 342 309 360 327 324 415 396 401 383 385 357
150 393 352 413 373 373 479 458 449 429 436 405
185 447 399 469 422 425 548 525 511 489 490 456
240 525 465 550 492 501 648 622 593 568 566 528
300 594 515 624 547 567 748 719 668 640 616 578
400 687 575 723 618 657 885 851 737 707 674 632
500 763 622 805 673 731 1035 997 810 777 721 676
630 843 669 891 728 809 1218 1174 893 856 771 723
800 919 710 976 777 886 1441 1390 943 905 824 772
1000 975 737 1041 808 945 1685 1627 1008 967 872 816

Voltage Drop (Per Amp Per Meter) BS 7671: 2008 table 4D3B

Nominal Cross Section Area 2 cables d.c. Ref. Methods C&F(clipped direct, on trays or in free air)
2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Touching Spaced* Trefoil and touching Flat and touching Flat and spaced*
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    r x z r x z r x z r x z r x z
50 0.93 0.93 0.22 0.95 0.92 0.30 0.97 0.80 0.19 0.82 0.79 0.26 0.84 0.79 0.34 0.86
70 0.63 0.64 0.21 0.68 0.66 0.29 0.72 0.55 0.18 0.58 0.57 0.25 0.62 0.59 0.32 0.68
95 0.46 0.48 0.20 0.52 0.51 0.28 0.58 0.42 0.175 0.45 0.44 0.25 0.50 0.47 0.31 0.57
120 0.36 0.39 0.195 0.43 0.42 0.28 0.50 0.33 0.170 0.37 0.36 0.24 0.43 0.40 0.30 0.50
150 0.29 0.31 0.190 0.37 0.34 0.27 0.44 0.27 0.165 0.32 0.30 0.24 0.38 0.34 0.30 0.45
185 0.23 0.26 0.190 0.32 0.29 0.27 0.39 0.22 0.160 0.27 0.25 0.23 0.34 0.29 0.29 0.41
240 0.18 0.20 0.180 0.27 0.23 0.26 0.35 0.175 0.160 0.23 0.20 0.23 0.30 0.24 0.28 0.37
300 0.145 0.160 0.180 0.24 0.19 0.26 0.32 0.140 0.155 0.21 0.165 0.22 0.28 0.20 0.28 0.34
400 0.105 0.140 0.175 0.22 0.18 0.24 0.30 0.12 0.130 0.195 0.160 0.21 0.26 0.21 0.25 0.32
500 0.086 0.120 0.170 0.21 0.165 0.23 0.29 0.105 0.145 0.18 0.145 0.20 0.25 0.19 0.24 0.30
630 0.068 0.105 0.165 0.195 0.150 0.22 0.27 0.091 0.145 0.17 0.135 0.195 0.23 0.175 0.22 0.28
800 0.053 0.095 0.160 0.185 0.145 0.21 0.25 0.082 0.140 0.160 0.125 0.180 0.22 0.170 0.195 0.26
1000 0.042 0.091 0.155 0.180 0.140 0.19 0.24 0.079 0.135 0.155 0.125 0.165 0.21 0.165 0.170 0.24

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
