Flame Retardant RG11 A/U Coaxial Cables

Flame Retardant Coaxial Cables

Application

The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.

Standards

Basic design adapted to MIL-C-17

Fire Performance

Flame Retardance (Single Vertical
Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*

Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

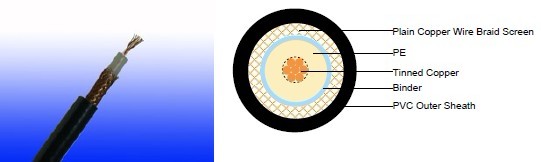

Cable Construction

Conductors: Tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Low density PE.
Overall Screen: Plain copper wire braid
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.

Physical And Thermal Propermal

Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter

Electrical Properties

IMPEDANCE

75±5Ω

CAPACITANCE

67 NF/KM

Velocity ratio(%)

66

Insulation resistance

>2000 Mohm.Km

Shield coverage

97%

DC resistance



Inner conductor

20.5 Ω/km

Outer conductor

4.5 Ω/km

Attenuation

Frequency(MHz)

Attenuation (dB/100 m)

Attenuation (dB/100ft)

50

4.2

1.28

100

6.2

1.89

200

9.3

2.84

400

13.8

4.21

500

15.5

4.73

600

17.1

5.21

860

20.1

6.13

1000

23.4

7.13

Return Loss

Frequency(MHz)

Return Loss (dB)

30-300 MHz

>30dB

300-600 MHz

>27dB

600-900 MHz

>25dB

CONSTRUCTION PARAMETERS

Cable
Code

Conductor
Diameter

Nominal Insulation Diameter

Nominal
Screen
No.x Diameter

Nominal Overall Diameter

Approx. Weight



mm

mm

No. x mm

mm

kg/km

FGD RG11 A/U

7 x 0.40

7.25 ± 0.18

192 x 0.18

10.3 ± 0.18

150
