Flame Retardant CAT5E Data Cables
FTX-CAT5e U/UTP4P24
FTX-CAT5e f/UTP4P24
FTX-CAT5e sf/UTP4P24
Application
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice
and data installations up to 100 MHz. In addition, these cables can be offered with copper wire
braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
Standards
ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568
Fire Performance
Flame Retardance (Single Vertical |
EN 60332-1-2; IEC 60332-1-2 |
Reduced Fire Propagation |
EN 60332-3-24; IEC 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
minimum Smoke Emission |
IEC 61034-2; EN 61034 -2 |

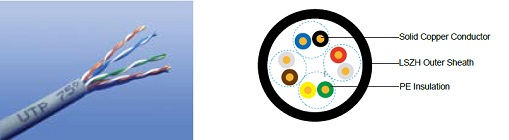

Cable Construction
Conductors: 24AWG solid bare copper.
Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655:section 2.6 can be offered.)
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape &
copper wire braid.
Physical And Thermal Properties
Temperature range: -30°C ~ +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
AWG |
|
24 |
Nominal Conductor Diameter |
mm |
0.50/0.51/0.53 |
maximum DC Resistant@20°C |
Ω/100m |
9.38 |
maximum DCR Unbalance |
% |
5 |
maximum mutual Capacitance |
pF/m |
55.8 |
maximum Capacitance Unbalance |
pF/100m |
330 |
Characteristic Impedance@1-100mHz |
Ω |
100+/-15 |
maximum Propagation Delay Skew |
ns/100m |
45 |
Transmission Properties
FREQ |
Attenuation dB/100m |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
RL |
0.772 |
1.8 |
67.0 |
64.0 |
66.0 |
63.0 |
— |
1 |
2.0 |
65.3 |
62.3 |
63.8 |
60.8 |
20.0 |
4 |
4.1 |
56.3 |
53.3 |
51.7 |
48.7 |
23.0 |
8 |
5.8 |
51.8 |
48.8 |
45.7 |
42.7 |
24.5 |
10 |
6.5 |
50.3 |
47.3 |
43.8 |
40.8 |
25.0 |
16 |
8.2 |
47.3 |
44.3 |
39.7 |
36.7 |
25.0 |
20 |
9.3 |
45.8 |
42.8 |
37.7 |
34.7 |
25.0 |
25 |
10.4 |
44.3 |
41.3 |
35.8 |
32.8 |
24.3 |
31.25 |
11.7 |
42.9 |
39.9 |
33.9 |
30.9 |
23.6 |
62.5 |
17.0 |
38.4 |
35.4 |
27.8 |
24.8 |
21.5 |
100 |
22.0 |
35.3 |
32.3 |
23.8 |
20.8 |
20.1 |
Construction Parameters
Cable Code |
Conductor |
Diameter Over Insulation |
Pairs |
Screen |
Nominal Overall Diameter |
|
mm |
mm |
|
|
mm |
FTX-CAT5EU/UTP4P24LH |
0.5/0.51 |
0.91 |
4 |
Nil |
5.1 |
FTX-CAT5EF/UTP4P24LH |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen |
6.3 |
FTX-CAT5ESF/UTP4P24LH |
0.53 |
1.00 |
4 |
Overall Aluminum Tape Screen & Copper Wire Braid |
6.6 |
