Flame Retardant Overall Screened Instrumentation Cables (multipair)
RE-2X(St)H
H2.jpg)
Application
The unarmoured LSZH versions (Part 1 Type 1) cables are generally use for indoor installation and
suitable for wet and damp areas. Generally used within industrial process manufacturing plants for
communication, data and voice transmission signals and services, Also used for the interconnection
of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume
emission.
Standards
Basic design to BS EN 50288-7 (formerly BS 5308)
Fire Performance
Flame Retardance (Single Vertical |
EN 60332-1-2; IEC 60332-1-2 |
Reduced Fire Propagation |
EN 60332-3-24; IEC 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
minimum Smoke Emission |
IEC 61034-2; EN 61034 -2 |
Voltage Rating
300/500V

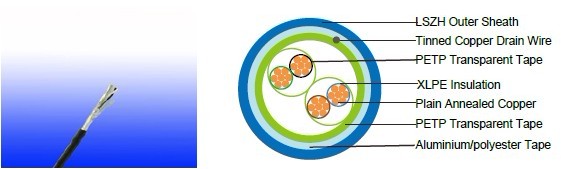

Cable Construction
Conductor:Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm2) or 150mm (for 2.5mm2).
Binder tape: PETP transparent tape.
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper
drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combined with copper braid screen can be offered as option.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
Colour Code
Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer sheath: Black . Other colours can be offered upon request.
Physical And Thermal Properties
Temperature range during operation: -30°c~+90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 7.5 x Overall Diameter
Electrical Properties
Conductor Area Size |
mm² |
0.5 |
0.75 |
1.0 |
1.5 |
|
Insulation Thickness (nominal) |
mm |
0.4 |
0.4 |
0.4 |
0.5 |
|
Insulation Thickness (minimum) |
mm |
0.26 |
0.26 |
0.26 |
0.35 |
|
Conductor Resistance (20°C) |
ohm/km |
36.7 |
25.0 |
18.5 |
12.3 |
|
Minimum Insulation Resistance (20°C) |
Mohm/km |
1000 |
||||
Maximum Mutual Capacitance |
nf/km |
250 |
||||
Capacitance Unbalance |
pf/500m |
500 |
||||
Maximum L/R (ratio) |
μH/Ω |
25 |
25 |
25 |
40 |
|
Operating Voltage |
V |
300 |
||||
Dielectric Strength for 1 Minute |
AC |
V |
≥1000 |
|||
DC |
V |
≥2000 |
||||
Construction Parameters
| Conductor | RE-2X(St)H | ||||
|---|---|---|---|---|---|
| No. of Core X Cross Section | Class of Conductor | Nominal Insulation Thickness | Nominal Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
| mm² | mm | mm | mm | kg/km | |
| 0.5mm² | |||||
| 2x0.5 | 2 | 0.4 | 0.9 | 5.5 | 44 |
| 3x0.5 | 2 | 0.4 | 0.9 | 5.7 | 54 |
| 4x0.5 | 2 | 0.4 | 0.9 | 6.2 | 64 |
| 5x0.5 | 2 | 0.4 | 0.9 | 6.7 | 75 |
| 8x0.5 | 2 | 0.4 | 1.0 | 7.9 | 108 |
| 10x0.5 | 2 | 0.4 | 1.0 | 9.1 | 132 |
| 12x0.5 | 2 | 0.4 | 1.0 | 9.4 | 149 |
| 14x0.5 | 2 | 0.4 | 1.0 | 9.8 | 167 |
| 16x0.5 | 2 | 0.4 | 1.0 | 10.3 | 185 |
| 20x0.5 | 2 | 0.4 | 1.1 | 11.3 | 228 |
| 24x0.5 | 2 | 0.4 | 1.1 | 12.8 | 269 |
| 27x0.5 | 2 | 0.4 | 1.1 | 13.0 | 293 |
| 30x0.5 | 2 | 0.4 | 1.2 | 13.7 | 327 |
| 37x0.5 | 2 | 0.4 | 1.2 | 14.7 | 388 |
| 40x0.5 | 2 | 0.4 | 1.2 | 15.2 | 415 |
| 0.75mm² | |||||
| 2x0.75 | 2 | 0.4 | 0.9 | 5.8 | 52 |
| 3x0.75 | 2 | 0.4 | 0.9 | 6.1 | 64 |
| 4x0.75 | 2 | 0.4 | 0.9 | 6.6 | 77 |
| 5x0.75 | 2 | 0.4 | 1.0 | 7.4 | 95 |
| 8x0.75 | 2 | 0.4 | 1.0 | 8.5 | 134 |
| 10x0.75 | 2 | 0.4 | 1.1 | 10.0 | 169 |
| 12x0.75 | 2 | 0.4 | 1.1 | 10.3 | 192 |
| 14x0.75 | 2 | 0.4 | 1.1 | 10.8 | 216 |
| 16x0.75 | 2 | 0.4 | 1.1 | 11.4 | 240 |
| 20x0.75 | 2 | 0.4 | 1.2 | 12.4 | 295 |
| 24x0.75 | 2 | 0.4 | 1.3 | 14.3 | 358 |
| 27x0.75 | 2 | 0.4 | 1.3 | 14.6 | 391 |
| 30x0.75 | 2 | 0.4 | 1.3 | 15.1 | 425 |
| 37x0.75 | 2 | 0.4 | 1.3 | 16.2 | 506 |
| 40x0.75 | 2 | 0.4 | 1.4 | 16.9 | 552 |
| 1.0mm² | |||||
| 2x1.0 | 2 | 0.4 | 0.9 | 6.2 | 62 |
| 3x1.0 | 2 | 0.4 | 0.9 | 6.6 | 78 |
| 4x1.0 | 2 | 0.4 | 0.9 | 7.1 | 95 |
| 5x1.0 | 2 | 0.4 | 0.9 | 7.7 | 112 |
| 8x1.0 | 2 | 0.4 | 1.0 | 9.2 | 167 |
| 10x1.0 | 2 | 0.4 | 1.0 | 10.7 | 205 |
| 12x1.0 | 2 | 0.4 | 1.0 | 11.0 | 235 |
| 14x1.0 | 2 | 0.4 | 1.0 | 11.6 | 266 |
| 16x1.0 | 2 | 0.4 | 1.1 | 12.4 | 306 |
| 20x1.0 | 2 | 0.4 | 1.2 | 13.5 | 376 |
| 24x1.0 | 2 | 0.4 | 1.2 | 15.3 | 446 |
| 27x1.0 | 2 | 0.4 | 1.2 | 15.6 | 490 |
| 30x1.0 | 2 | 0.4 | 1.2 | 16.2 | 536 |
| 37x1.0 | 2 | 0.4 | 1.3 | 17.6 | 653 |
| 40x1.0 | 2 | 0.4 | 1.3 | 18.3 | 700 |
| 1.5mm² | |||||
| 2x1.5 | 2 | 0.5 | 0.9 | 7.2 | 80 |
| 3x1.5 | 2 | 0.5 | 0.9 | 7.6 | 103 |
| 4x1.5 | 2 | 0.5 | 1.0 | 8.5 | 133 |
| 5x1.5 | 2 | 0.5 | 1.0 | 9.2 | 158 |
| 8x1.5 | 2 | 0.5 | 1.1 | 10.9 | 236 |
| 10x1.5 | 2 | 0.5 | 1.1 | 12.8 | 290 |
| 12x1.5 | 2 | 0.5 | 1.1 | 13.2 | 333 |
| 14x1.5 | 2 | 0.5 | 1.2 | 14.0 | 387 |
| 16x1.5 | 2 | 0.5 | 1.2 | 14.8 | 433 |
| 20x1.5 | 2 | 0.5 | 1.3 | 16.1 | 534 |
| 24x1.5 | 2 | 0.5 | 1.3 | 18.3 | 633 |
| 27x1.5 | 2 | 0.5 | 1.4 | 18.9 | 709 |
| 30x1.5 | 2 | 0.5 | 1.4 | 19.6 | 776 |
| 37x1.5 | 2 | 0.5 | 1.4 | 21.1 | 931 |
| 40x1.5 | 2 | 0.5 | 1.5 | 22.1 | 1012 |
