TPEE Insulated PUR Sheathed Cables, 600/1000V
Application
These cables are used as power and control cables or connecting cables. They are suitable for automatic production line, control unit, factory cabling, office equipment, etc.

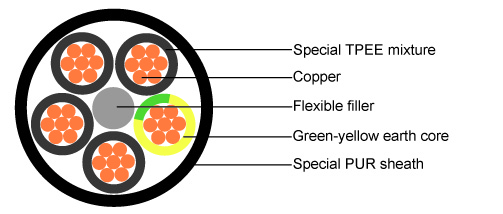

Cable Construction
| Conductor | VDE0295 Class 5 |
| Insulation | Special high-strength TPEE mixture |
| Center filler | Flexible filler |
| Sheath | Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 600/1000V
- Test voltage: 3500V/5min(AC)
- Minimum bend radius: Fixed installation: 4xOD
- Temperature range: Fixed installation: -50~90℃
- Retardant properties: Complied with IEC60332-1
Dimensions and Weight
| No.of Cores | Conductor Cross-Sectional Area | Strands Number and Dia. of Wires | Nominal Dia. of Cable | Max. Dia. of Cable | Approx. Weight |
| mm^2 | No./mm | mm | mm | kg/km | |
| 1 | 4 | 56/0.30 | 5.2 | 6.0 | 62 |
| 1 | 6 | 84/0.30 | 6.9 | 7.7 | 96 |
| 1 | 10 | 84/0.40 | 8.0 | 8.9 | 149 |
| 1 | 16 | 126/0.40 | 9.5 | 10.4 | 213 |
| 1 | 25 | 196/0.40 | 11.4 | 12.5 | 320 |
| 1 | 35 | 276/0.40 | 13.1 | 14.4 | 434 |
| 1 | 50 | 396/0.40 | 14.8 | 16.3 | 601 |
| 1 | 70 | 380/0.49 | 17.8 | 19.6 | 850 |
| 1 | 95 | 513/0.49 | 20.1 | 22.1 | 1121 |
| 1 | 120 | 630/0.49 | 21.7 | 23.9 | 1356 |
| 1 | 150 | 777/0.49 | 23.8 | 26.2 | 1663 |
| 1 | 185 | 976/0.49 | 26.5 | 29.2 | 2077 |
| 4 | 1.5 | 48/0.20 | 8.1 | 9.0 | 113 |
| 4 | 2.5 | 77/0.20 | 9.5 | 10.5 | 160 |
| 4 | 4 | 56/0.30 | 10.7 | 11.8 | 232 |
| 4 | 6 | 84/0.30 | 14.6 | 16.1 | 364 |
| 4 | 10 | 84/0.40 | 17.6 | 19.4 | 591 |
| 4 | 16 | 126/0.40 | 20.8 | 22.9 | 836 |
| 4 | 25 | 196/0.40 | 25.4 | 28.0 | 1265 |
| 4 | 35 | 276/0.40 | 29.7 | 32.7 | 1729 |
| 4 | 50 | 396/0.40 | 33.8 | 37.1 | 2425 |
| 4 | 70 | 380/0.49 | 41.1 | 45.2 | 3383 |
