TPEE Insulated PUR Sheathed Cables with Screen, 600/1000V
Application
These cables are used as power and control cables or connecting cables. They are suitable for automatic production line, control unit, factory cabling, office equipment, etc.

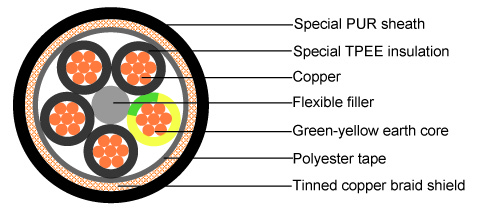

Cable Construction
| Conductor |
VDE0295 Class 5 |
| Insulation |
Special high-strength TPEE mixture |
| Center filler |
Flexible filler |
| Tape |
Polyester tape |
| Screen |
Tinned copper braid shield |
| Sheath |
Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 600/1000V
- Test voltage: 3500V/5min(AC)
-
- Minimum bend radius: Fixed installation: 4xOD
- Temperature range: Fixed installation: -50~90℃
- Retardant properties: Complied with IEC60332-1
Dimensions and Weight
| No.of Cores |
Conductor Cross-Sectional Area |
Strands Number and Dia. of Wires |
Nominal Dia. of Cable |
Max. Dia. of Cable |
Approx. Weight |
| mm^2 |
No./mm |
mm |
mm |
kg/km |
| 1 |
4 |
56/0.30 |
6.1 |
6.9 |
82 |
| 1 |
6 |
84/0.30 |
7.6 |
8.5 |
120 |
| 1 |
10 |
84/0.40 |
8.9 |
9.8 |
181 |
| 1 |
16 |
126/0.40 |
10.2 |
11.2 |
246 |
| 1 |
25 |
196/0.40 |
12.1 |
13.3 |
360 |
| 1 |
35 |
276/0.40 |
14.0 |
15.4 |
486 |
| 1 |
50 |
396/0.40 |
15.5 |
17.1 |
654 |
| 1 |
70 |
380/0.49 |
18.7 |
20.5 |
934 |
| 1 |
95 |
513/0.49 |
21.0 |
23.1 |
1217 |
| 1 |
120 |
630/0.49 |
22.8 |
25.1 |
1469 |
| 1 |
150 |
777/0.49 |
24.9 |
27.4 |
1787 |
| 1 |
185 |
976/0.49 |
27.6 |
30.4 |
2215 |
| 4 |
1.5 |
48/0.20 |
8.7 |
9.6 |
141 |
| 4 |
2.5 |
77/0.20 |
9.9 |
10.9 |
189 |
| 4 |
4 |
56/0.30 |
11.3 |
12.4 |
270 |
| 4 |
6 |
84/0.30 |
15.0 |
16.5 |
411 |
| 4 |
10 |
84/0.40 |
18.0 |
19.8 |
648 |
| 4 |
16 |
126/0.40 |
21.4 |
23.5 |
928 |
| 4 |
25 |
196/0.40 |
26.0 |
28.6 |
1378 |
| 4 |
35 |
276/0.40 |
30.9 |
34.0 |
1944 |
| 4 |
50 |
396/0.40 |
34.8 |
38.2 |
2655 |
