Cables for Moving
Application
These cables are used for profibus system. They are suitable for rugged environment and frequently moving outdoor. The adhesion-free PUR outer sheath is characterized by its high impact strength, excellent oil and UV resistance and superior chemical resistance and thus ensures a long cable service life.

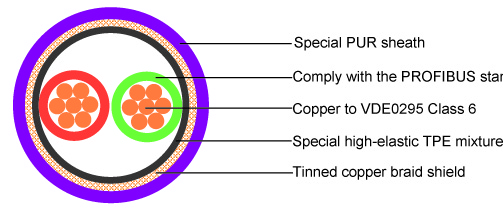

Cable Construction
| Conductor | VDE0295 Class 6 |
| Insulation | Comply with the PROFIBUS standard |
| Inner Sheath | Special high-elastic TPE mixture |
| Screen | Tinned copper braid shield |
| Sheath | Special low viscosity wear resistant PUR mixture |
Technical Properties
- Voltage: 250V
- Test voltage: 1500V/5min(AC)
- Minimum bend radius: Fixed installation: 7.5xOD.; Moving installation: 12.5xOD
- Temperature range: Fixed installation: -50~90℃; Moving installation: -40~90℃
- Maximum mobile speed: Unsupported speed: 8m/s; Gliding speed: 5m/s; Acceleration: 75m/s^2
- Identity impedance: 100-120Ω
Dimensions and Weight
No.of Pairs |
Conductor Cross-Sectional Area | Strands Number and Dia. of Wires | Nominal Dia. of Cable | Max. Dia. of Cable | Approx. Weight |
| mm^2 | No./mm | mm | mm | kg/km | |
| 1 | 0.25 | 19/0.13 |
7.0 | 8.5 | 48 |
| 2 | 0.25 | 19/0.13 |
8.0 | 10.0 | 62 |
| 2 | 0.5 | 16/0.20 | 10.0 | 11.5 | 120 |
| 4 | 0.5 | 16/0.20 | 11.5 | 13.5 | 190 |
