Spanish Standard Industrial Cables
DN-K
Application and Description
Flexible LSZH cable for fixed installations. Suitable for transport and distribution of electric power. This cable is manufactured with flexible conductors in order to facilitate installations with sinuous courses. For indoor and outdoor use.
Standard and Approval
UNE 21022, IEC 60502, EN 60332-1, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034

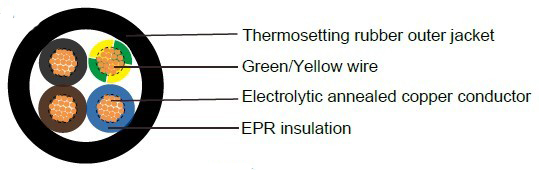

Cable Construction
- Flexible electrolytic annealed copper conductor
- Class 5 in accordance with IEC 60228.
- Thermosetting rubber type EPR insulation
- Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow
- Green-yellow grounding, 3 conductors and above
- Thermosetting rubber type EM8 outer sheath
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 3500 volts
- Minimum bending radius: 5 x Ø
- Working temperature: -20º C to +90º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
NOMINAL WEIGHT KG/KM | AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
NOMINAL WEIGHTKG/KM |
| 16(30/30) | 1×1.5 | 5.8 | 56 | 16(30/30) | 3×1.5 | 10.2 | 137 |
| 14(50/30) | 1×2.5 | 6.3 | 67 | 14(50/30) | 3×2.5 | 11.2 | 174 |
| 12(56/28) | 1×4 | 6.8 | 82 | 12(56/28) | 3×4 | 12.2 | 233 |
| 10(84/28) | 1×6 | 7.3 | 106 | 10(84/28) | 3×6 | 13.4 | 325 |
| 8(80/26) | 1×10 | 8.4 | 153 | 8(80/26) | 3×10 | 16.0 | 480 |
| 6(128/26) | 1×16 | 9.5 | 210 | 6(128/26) | 3×16 | 19.8 | 696 |
| 4(200/26) | 1×25 | 11.1 | 308 | 4(200/26) | 3×25 | 21.6 | 1040 |
| 2(280/26) | 1×35 | 14.3 | 413 | 2(280/26) | 3×35 | 24.8 | 1408 |
| 16(30/30) | 2×1.5 | 9.8 | 120 | 16(30/30) | 4×1.5 | 11.0 | 163 |
| 14(50/30) | 2×2.5 | 10.7 | 151 | 14(50/30) | 4×2.5 | 12.1 | 211 |
| 12(56/28) | 2×4 | 11.6 | 193 | 12(56/28) | 4×4 | 13.2 | 283 |
| 10(84/28) | 2×6 | 12.7 | 255 | 10(84/28) | 4×6 | 14.6 | 385 |
| 8(80/26) | 2×10 | 14.9 | 377 | 8(80/26) | 4×10 | 17.3 | 583 |
| 6(128/26) | 2×16 | 16.9 | 552 | 6(128/26) | 4×16 | 19.8 | 875 |
