FRORAR
Application and Description
These cables are for energy transport and signal transmission both in internal and external environments, wet as well. For fixed lay in free air, in pipe or channel, on walling and metallic frames, or suspended. The use of armoured cables is recommended whenever conditions are such that mechanical shocks might occur, the main feature is protection against strikes and rodents. Also appropriate for direct or indirect ground lay.
Standard and Approval
- CEI 20-11, CEI 20-34, IEC 60502-1, CEI 20-22 II, CEI 20-34, CEI 20-35, CEI 20-37

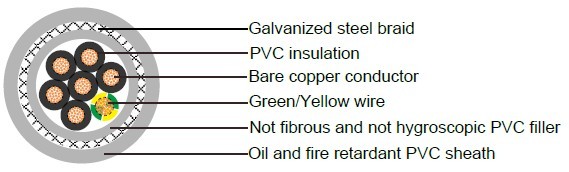

Cable Construction
| Flexible bare copper strands |
| Strands to IEC 60228 Class-5 |
| PVC insulation R2 type |
| Colour coded to Unel 00722 |
| Not fibrous and not hygroscopic fire retardant PVC filler |
| Galvanized steel braid with minimum coverage 85% |
| Oil and fire retardant transparent PVC TM2 to CEI 20-11 outer jacket |
Technical Characteristics
| WORKING VOLTAGE |
450/750 V |
| TEST VOLTAGE |
2500 v |
| MINIMUM BENDING RADIUS |
8 x Ø |
| FIXED INSTALLATION TEMPERATURE |
-15º C to + 70º C |
| FLEXIBLE INSTALLATION TEMPERATURE |
0º C to + 70º C |
| SHORT CIRCUIT TEMPERATURE |
+160º C |
| FLAME RETARDANT |
CEI 20-22 II |
| OIL RETARDANT |
CEI 20-34/0-1 |
| No flame propagation |
CEI 20-35 |
| INSULATION RESISTANCE |
20 MΩ x km |
Cable Parameter
|
| AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA |
NOMINAL OVERALL DIAMETER |
NOMINAL WEIGHT |
AWG |
NO. OF CORES X NOMINAL CROSS SECTIONAL AREA |
NOMINAL OVERALL DIAMETER |
NOMINAL WEIGHT |
| |
# X MM² |
MM |
KG/KM |
|
# X MM² |
MM |
KG/KM |
| 20(16/32) |
2 x 0.5 |
7.1 |
52 |
16(30/30) |
10 x 1.5 |
15.6 |
465 |
| 20(16/32) |
3 x 0.5 |
7.3 |
64 |
16(30/30) |
12 x 1.5 |
16.3 |
495 |
| 20(16/32) |
4 x 0.5 |
8.0 |
81 |
16(30/30) |
16 x 1.5 |
17.7 |
550 |
| 20(16/32) |
5 x 0.5 |
8.4 |
96 |
16(30/30) |
24 x 1.5 |
21.4 |
750 |
| 20(16/32) |
7 x 0.5 |
8.9 |
118 |
14(50/30) |
2 x 2.5 |
10.7 |
210 |
| 20(16/32) |
10 x 0.5 |
10.9 |
210 |
14(50/30) |
3 x 2.5 |
11.2 |
240 |
| 20(16/32) |
12 x 0.5 |
11.3 |
230 |
14(50/30) |
4 x 2.5 |
12.4 |
270 |
| 20(16/32) |
16 x 0.5 |
12.6 |
260 |
14(50/30) |
5 x 2.5 |
13.3 |
340 |
| 20(16/32) |
24 x 0.5 |
15.2 |
425 |
14(50/30) |
7 x 2.5 |
15.1 |
450 |
| 18(24/32) |
2 x 0.75 |
7.7 |
70 |
14(50/30) |
10 x 2.5 |
18.2 |
590 |
| 18(24/32) |
3 x 0.75 |
8.0 |
88 |
14(50/30) |
12 x 2.5 |
19.0 |
630 |
| 18(24/32) |
4 x 0.75 |
8.7 |
108 |
14(50/30) |
16 x 2.5 |
21.3 |
750 |
| 18(24/32) |
5 x 0.75 |
9.2 |
128 |
14(50/30) |
24 x 2.5 |
24.9 |
1190 |
| 18(24/32) |
7 x 0.75 |
10.2 |
190 |
12(56/28) |
2 x 4 |
12.7 |
270 |
| 18(24/32) |
10 x 0.75 |
12.5 |
255 |
12(56/28) |
3 x 4 |
13.3 |
310 |
| 18(24/32) |
12 x 0.75 |
13.0 |
290 |
12(56/28) |
4 x 4 |
15.1 |
400 |
| 18(24/32) |
16 x 0.75 |
14.0 |
350 |
12(56/28) |
5 x 4 |
16.3 |
480 |
| 18(24/32) |
24 x 0.75 |
16.9 |
497 |
10(84/28) |
2 x 6 |
14.1 |
390 |
| 17(32/32) |
2 x 1 |
8.1 |
105 |
10(84/28) |
3 x 6 |
15.4 |
445 |
| 17(32/32) |
3 x 1 |
8.4 |
120 |
10(84/28) |
4 x 6 |
16.6 |
580 |
| 17(32/32) |
4 x 1 |
9.0 |
137 |
10(84/28) |
5 x 6 |
17.9 |
700 |
| 17(32/32) |
5 x 1 |
10.2 |
198 |
8(80/26) |
2 x 10 |
17.5 |
640 |
| 17(32/32) |
7 x 1 |
10.8 |
220 |
8(80/26) |
3 x 10 |
18.6 |
700 |
| 17(32/32) |
10 x 1 |
13.3 |
340 |
8(80/26) |
4 x 10 |
20.4 |
860 |
| 17(32/32) |
12 x 1 |
14.0 |
400 |
4(200/26) |
5 x 10 |
22.5 |
1080 |
| 17(32/32) |
16 x 1 |
15.8 |
490 |
6(128/26) |
2 x 16 |
19.9 |
950 |
| 17(32/32) |
24 x 1 |
18.1 |
510 |
6(128/26) |
3 x 16 |
21.6 |
1130 |
| 16(30/30) |
2 x 1.5 |
9.1 |
135 |
6(128/26) |
4 x 16 |
23.4 |
1360 |
| 16(30/30) |
3 x 1.5 |
9.9 |
170 |
4(200/26) |
2 x 25 |
23.9 |
1450 |
| 16(30/30) |
4 x 1.5 |
10.6 |
200 |
4(200/26) |
3 x 25 |
25.2 |
1675 |
| 16(30/30) |
5 x 1.5 |
11.3 |
235 |
4(200/26) |
4 x 25 |
27.5 |
1910 |
| 16(30/30) |
7 x 1.5 |
12.5 |
275 |
|
|
|
|
