NAYCY
Application and Description
NAYCY is used in power plants, industrial and switching installations, for street lighting, domestic power supply connections, in secondary distribution networks and other. These cables are preferentially used for underground application as well as for interior installation in room and cable ducts and for outdoor and applications, for indoor installations, in the open air, underground and in water where greater mechanical protection against accidental contact is required if damaged.
Standard and Approval
VDE 0276 part 603, IEC 60502

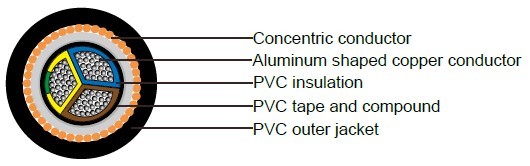

Cable Construction
- Aluminium Conductor
- VDE 0295 cl. 1 or cl. 2 (round and sector shaped), BS 6360/IEC 60228 cl. 1 or cl. 2
- PVC insulation type DIV4 acc. VDE0276
- Color coded to DIN VDE 0293
- Tapes and PVC compound inner sheath
- Concentric conductor: Copper wires and copper tapes
- PVC outer sheath type DMV5 acc. VDE 0276
Technical Data
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Minimum bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 30º C to +70º C
- Short circuit temperature: +160º C
- Flame-retardant to DIN VDE 0472 part 804 class B/IEC 60332-1
- Insulation resistance: >20 MΩ x km
Cable Parameter
| AWG | NO. OF CORE AND NOMINAL CROSS SECTIONAL # X MM² |
STRANDED CONDUCTOR TYPE | CONCENTRIC CONDUCTOR SIZE MM² |
NOMINAL OVERALL DIAMETER MM |
ALUMINIUM WEIGHT KG/KM | COPPER WEIGHT KG/KM | NOMINAL CABLE WEIGHT KG/KM |
| 2 | 3 x 35.0 | re | 35 | 27.9 | 291 | 230 | 1143 |
| 1 | 3 x 50.0 | re | 50 | 31.5 | 392 | 335 | 1522 |
| 2/0 | 3 x 70.0 | se | 70 | 33.1 | 567 | 456 | 1675 |
| 3/0 | 3 x 95.0 | se | 95 | 36.9 | 785 | 665 | 2247 |
| 4/0 | 3 x 120.0 | se | 120 | 40.0 | 993 | 849 | 2715 |
| 2/0 | 3 x 70.0 | sm | 35 | 33.1 | 584 | 236 | 1489 |
| 2/0 | 3 x 70.0 | sm | 70 | 34.1 | 584 | 413 | 1648 |
| 3/0 | 3 x 95.0 | sm | 50 | 37.7 | 809 | 296 | 1974 |
| 3/0 | 3 x 95.0 | sm | 95 | 38.7 | 809 | 580 | 2253 |
| 4/0 | 3 x 120.0 | sm | 70 | 40.2 | 1023 | 432 | 2381 |
| 4/0 | 3 x 120.0 | sm | 120 | 40.9 | 1023 | 694 | 2654 |
| 300mcm | 3 x 150.0 | sm | 70 | 44.2 | 1257 | 432 | 2798 |
| 300mcm | 3 x 150.0 | sm | 150 | 45.4 | 1257 | 804 | 3164 |
| 350mcm | 3 x 185.0 | sm | 95 | 48.6 | 1579 | 580 | 3498 |
