Industrial Cables
NAYY-J/NAYY-O
Application and Description
NAYY is used in power plants industrial and switching installations, in secondary distribution networks and other. These cables are preferentially used in outdoor applications, for indoor installations, in the open air, underground and in water where mechanical damage is not anticipated.
Standard and Approval
VDE 0276 part 603, IEC 60502

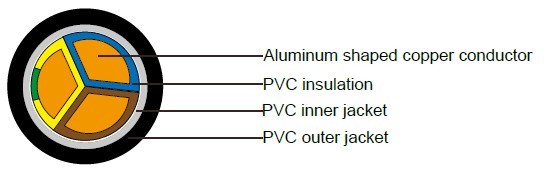

Cable Construction
- Aluminium Conductor
- VDE 0295 cl. 1 or cl. 2 (round and sector shaped), BS 6360/IEC 60228 cl. 1 or cl. 2
- PVC insulation type DIV4 acc. VDE0207
- Color coded to DIN VDE 0293
- PVC compound inner sheath
- PVC outer sheath type DMV5 acc. VDE 0207
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Minimum bending radius: 12 x Ø
- Flexing temperature: -5º C to +50º C
- Fixed installation temperature: - 30º C to +70º C
- Short circuit temperature: +160º C
- Flame-retardant to DIN VDE 0472 part 804 class B/IEC 60332-1
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
STRANDED CONDUCTOR TYPE | NOMINAL OVERALL DIAMETER MM |
ALUMINIUM WEIGHT KG/KM |
NOMINAL CABLE WEIGHT KG/KM |
| NAYY-O | |||||
| 4 | 1 x 25.0 | re | 12.2 | 70 | 190 |
| 2 | 1 x 35.0 | re | 13.1 | 97 | 229 |
| 1 | 1 x 50.0 | re | 14.5 | 131 | 288 |
| 1 | 1 x 50.0 | rm | 15.4 | 135 | 303 |
| 2/0 | 1 x 70.0 | rm | 17.1 | 195 | 385 |
| 3/0 | 1 x 95.0 | rm | 19.3 | 270 | 499 |
| 4/0 | 1 x 120.0 | rm | 20.8 | 341 | 589 |
| 300mcm | 1 x 150.0 | rm | 22.6 | 419 | 705 |
| 350mcm | 1 x 185.0 | rm | 24.9 | 526 | 862 |
| 500mcm | 1 x 240.0 | rm | 27.7 | 690 | 1083 |
| 750mcm | 1 x 300.0 | rm | 30.6 | 863 | 1325 |
| - | 1 x 400.0 | rm | 34.0 | 1109 | 1657 |
| - | 1 x 500.0 | rm | 38.0 | 1461 | 2172 |
| 4 | 2 x 25.0 | re | 22.4 | 140 | 685 |
| 2 | 2x 35.0 | re | 24.3 | 194 | 826 |
| 2 | 2 x 35.0 | rm | 25.4 | 199 | 880 |
| 1 | 2 x 50.0 | re | 27.3 | 261 | 1049 |
| 1 | 2 x 50.0 | rm | 29.1 | 269 | 1155 |
| 2/0 | 2 x 70.0 | rm | 33.1 | 390 | 1447 |
| 3/0 | 2 x 95.0 | rm | 37.9 | 539 | 1905 |
| NAYY-J | |||||
| 4 | 3 x 25.0 | re | 23.7 | 210 | 768 |
| 2 | 3 x 35.0 | re | 25.8 | 291 | 932 |
| 1 | 3 x 50.0 | sm | 30.9 | 404 | 1294 |
| 1 | 3 x 50.0 | sm | 27.8 | 404 | 994 |
| 2/0 | 3 x 70.0 | sm | 31.2 | 584 | 1250 |
| 3/0 | 3 x 95.0 | sm | 35.8 | 809 | 1675 |
| 4/0 | 3 x 120.0 | sm | 38.0 | 1023 | 1964 |
| 300mcm | 3 x 150.0 | sm | 41.8 | 1257 | 2365 |
| 350mcm | 3 x 185.0 | sm | 45.7 | 1579 | 2913 |
| 500mcm | 3 x 240.0 | sm | 51.1 | 2071 | 3693 |
| 1 | 3 x 50.0+25 | re+re | 30.5 | 462 | 1310 |
| 1 | 3 x 50.0+25 | sm+rm | 31.2 | 474 | 1158 |
| 2/0 | 3 x 70.0+35 | sm+rm | 36.0 | 684 | 1537 |
| 3/0 | 3 x 95.0+50 | sm+rm | 40.2 | 944 | 1971 |
| 4/0 | 3x120.0+70 | sm+rm | 43.2 | 1218 | 2346 |
| 300mcm | 3 x 150.0+70 | sm+rm | 48.0 | 1452 | 2839 |
| 350mcm | 3 x 185.0+95 | sm+rm | 52.3 | 1848 | 3470 |
| 500mcm | 3x240.0+120 | sm+rm | 58.7 | 2412 | 4399 |
| 750mcm | 3x300.0+150 | sm+rm | 64.3 | 3008 | 5321 |
| 4 | 4 x 25.0 | re | 25.8 | 281 | 912 |
| 2 | 4 x 35.0 | re | 28.2 | 388 | 1111 |
| 1 | 4 x 50.0 | se | 31.2 | 539 | 1265 |
| 2/0 | 4 x 70.0 | se | 36.0 | 779 | 1658 |
| 3/0 | 4 x 95.0 | se | 40.2 | 1079 | 2139 |
| 4/0 | 4 x120.0 | se | 43.2 | 1364 | 2524 |
| 300mcm | 4 x 150.0 | se | 48.0 | 1676 | 3123 |
| 350mcm | 4 x 185.0 | se | 53.7 | 2105 | 4002 |
| 500mcm | 4 x 240.0 | se | 58.7 | 2762 | 4848 |
| 750mcm | 4 x 300.0 | se | 64.3 | 3452 | 5882 |
| 4 | 5 x 25.0 | re | 28.1 | 351 | 1072 |
| 2 | 5 x 35.0 | re | 30.9 | 485 | 1326 |
| 1 | 5 x 50.0 | re | 35.7 | 653 | 1771 |
| 4 | 5 x 25.0 | rm | 30.4 | 360 | 1183 |
| 2 | 5 x 35.0 | rm | 33.0 | 497 | 1456 |
| 1 | 5 x 50.0 | rm | 38.1 | 673 | 1919 |
| 2/0 | 5 x 70.0 | rm | 43.3 | 974 | 2452 |
| 3/0 | 5 x 95.0 | rm | 49.8 | 1349 | 3257 |
