Spanish Standard Industrial Cables
RVFV & VVFV / RVFV-K & VVFV-K
Application and Description
These cables are especially suitable for fixed installations that may be subject to mechanical aggression. They are highly recommended for use in installations in warehouses, production plants and agricultural facilities where the presence of rodents could imply a threat to cable integrity. At the same time, its use is recommended for street lighting installations. In some cases, these cables are used in those places where there is a potential explosion hazard such as petrol stations or flammable product warehouses.
Standard and Approval
UNE 21123-2, IEC 60502, EN 60332-1, IEC 60332-1

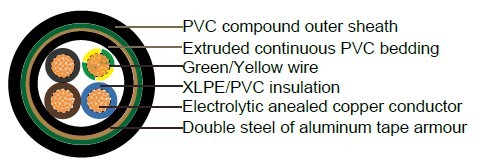

Cable Construction
- Rigid electrolytic annealed copper conductor
- Class 1 (up to 4 mm2 ) or 2 (from 6 mm2 upwards) in accordance with IEC 60228
- Class 5 for (RVFV-K/VVFV-K) in accordance with IEC 60228
- XLPE insulation (RVFV/RVFV-K) or PVC insulation (VVFV/ VVFV-K) according to IEC 60502
- up to 5 conductors: by colors (RVFV/RVFV-K)
- 6 or more conductors: black numbered + green/yellow. (VVFV/VVFV-K)
- Extruded continuous PVC bedding type ST1/ST2 of standard IEC 60502.
- Double steel or aluminum tape armour
- Flexible PVC compound outer sheath type ST1/ST2 of standard IEC 60502
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 10 x Ø
- Working temperature: -15º C to +90º C
- Short circuit temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
NOMINAL WEIGHT KG/KM |
AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETER MM |
NOMINAL WEIGHT KG/KM |
| 6 | 1×16 | 14.4 | 345 | 3/0 | 3×95/50 | 41.3 | 4613 |
| 4 | 1×25 | 16 | 477 | 4/0 | 3×120/70 | 46.9 | 6,023 |
| 2 | 1×35 | 17.3 | 582 | 300MCM | 3×150/70 | 54.7 | 7455 |
| 1 | 1×50 | 18.5 | 722 | 350MCM | 3×185/95 | 55.1 | 8890 |
| 2/0 | 1×70 | 20.7 | 962 | 500MCM | 3×240/120 | 62.5 | 11055 |
| 3/0 | 1×95 | 22.1 | 1173 | 16 | 4×1.5 | 13.2 | 275 |
| 4/0 | 1×120 | 24.6 | 1522 | 14 | 4×2.5 | 14.4 | 339 |
| 300MCM | 1×150 | 26.5 | 1821 | 12 | 4×4 | 15.1 | 419 |
| 350MCM | 1×185 | 28.5 | 2230 | 10 | 4×6 | 17.3 | 545 |
| 500MCM | 1×240 | 31.7 | 2,35 | 8 | 4×10 | 19.8 | 770 |
| 16 | 2×1.5 | 12.3 | 227 | 6 | 4×16 | 22.3 | 1062 |
| 14 | 2×2.5 | 12.8 | 259 | 4 | 4×25 | 26.5 | 1602 |
| 12 | 2×4 | 13.6 | 311 | 16 | 5×1.5 | 14.4 | 320 |
| 10 | 2×6 | 15.8 | 411 | 14 | 5×2.5 | 15.3 | 390 |
| 8 | 2×10 | 17.8 | 552 | 12 | 5×4 | 17.2 | 509 |
| 6 | 2×16 | 19.6 | 726 | 10 | 5×6 | 18.8 | 640 |
| 16 | 3×1.5 | 12.8 | 252 | 8 | 5×10 | 21.3 | 909 |
| 14 | 3×2.5 | 13.3 | 293 | 6 | 5×16 | 25.2 | 1304 |
| 12 | 3×4 | 14.5 | 367 | 16 | 6×1.5 | 15.8 | 394 |
| 10 | 3×6 | 16.3 | 468 | 16 | 7×1.5 | 15.8 | 412 |
| 8 | 3×10 | 18.3 | 641 | 16 | 10×1.5 | 17.8 | 521 |
| 6 | 3×16 | 20.4 | 870 | 16 | 12×1.5 | 19.2 | 603 |
| 6 | 3×16/10 | 21.5 | 996 | 16 | 16×1.5 | 20.8 | 714 |
| 4 | 3×25/16 | 25.1 | 1468 | 16 | 19×1.5 | 21.8 | 792 |
| 2 | 3×35/16 | 27.9 | 1854 | 16 | 24×1.5 | 23.3 | 914 |
| 1 | 3×50/25 | 29.6 | 2101 | 16 | 27×1.5 | 25.4 | 1015 |
| 2/0 | 3×70/35 | 37.8 | 3683 |
