Spanish Standard Industrial Cables
RZ1MZ1-K(AS))/RZ1MAZ1-K(AS)
Application and Description
The armoured and halogen free cable is a high security cable. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended for public places, in hazardous areas with explosive gas atmospheres, and installations in general where the cable is subject to risk of mechanical aggression.
Standard and Approval
UNE 21123-4, IEC 60502, EN 60332-1, EN 50265, EN 50266, EN 50267-1, EN 50267-2, EN 61034, IEC 60332-1, IEC 60332-3, IEC 60754-1, IEC 60754-2, IEC 61034

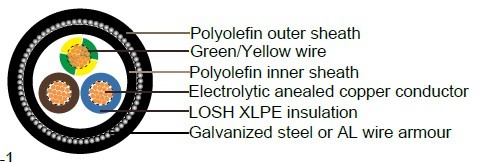

Cable Construction
- Flexible electrolytic annealed copper conductor
- Class 5 in accordance with IEC 60228.
- Cross-linked polyethylene insulation, low smoke and halogen free, type DIX 3 according to HD 603
- Color coded to HD 308
- Polyolefin inner sheath according to UNE 21123-4
- Galvanized steel(for multi-core cables) or aluminum wire(for single-core cables) armor
- LSOH polyolephine outer sheath according to UNE 21123-4
Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 2000 volts
- Minimum bending radius: 10 x Ø
- Working temperature: -15º C to +90º C
- Short circuit temperature: +250º C
- Insulation resistance: 20 MΩ x km
- Halogen free: IEC 60754-1, EN 50267-2-1
- No corrosive gases: IEC 60754-2, EN 50267-2-2
- No toxic gases: NES 02-713, NF X 70-100
- Low smoke density: IEC 61034, EN 50268-2
- Flame retardant: IEC 60332-1, EN 50265-2-1
- Non-flame propagating: IEC 60332-3, EN 50266-2
Cable Parameter
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETERMM |
NOMINAL WEIGHTKG/KM | AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² |
NOMINAL OVERALL DIAMETERMM |
NOMINAL WEIGHTKG/KM |
| RZ1MZ1-K(AS) | 16(30/30) | 5G1.5 | 15.9 | 446 | |||
| 16(30/30) | 2×1.5 | 13.1 | 320 | 14(50/30) | 5G2.5 | 16.4 | 512 |
| 14(50/30) | 2×2.5 | 14.0 | 367 | 12(56/28) | 5G4 | 18.0 | 638 |
| 12(56/28) | 2×4 | 15.1 | 435 | 10(84/28) | 5G6 | 19.5 | 775 |
| 10(84/28) | 2×6 | 16.1 | 509 | 8(80/26) | 5G10 | 23.6 | 1361 |
| 8(80/26) | 2×10 | 18.0 | 664 | 6(128/26) | 5G16 | 26.4 | 1773 |
| 6(128/26) | 2×16 | 20.8 | 908 | 4(200/26) | 5G25 | 30.9 | 2437 |
| 4(200/26) | 2×25 | 24.3 | 1269 | RZ1MAZ1-K(AS) | |||
| 2 (280/26) | 2×35 | 27.7 | 1669 | 8(80/26) | 1×10 | 14.5 | 341 |
| 16(30/30) | 3G1.5 | 13.8 | 355 | 6(128/26) | 1×16 | 15.0 | 380 |
| 14(50/30) | 3G2.5 | 14.7 | 410 | 4(200/26) | 1×25 | 16.6 | 495 |
| 12(56/28) | 3G4 | 15.8 | 489 | 2(280/26) | 1×35 | 17.7 | 610 |
| 8(80/26) | 1×10 | 14.6 | 341 | 1(400/26) | 1×50 | 19.3 | 775 |
| 6(128/26) | 1×16 | 15.3 | 405 | 2/0 (356/24) |
1×70 | 21.5 | 1010 |
| 10(84/28) | 3G6 | 16.9 | 580 | 3/0 (485/24) |
1×95 | 23.1 | 1245 |
| 8(80/26) | 3G10 | 19.1 | 777 | 4/0 (614/24) |
1×120 | 25.1 | 1525 |
| 6(128/26) | 3×16 | 22.6 | 1289 | 300 MCM (765/24) |
1×150 | 27.0 | 1825 |
| 4(200/26) | 3×25 | 26.2 | 1739 | 350 MCM (944/24) |
1×185 | 28.9 | 2150 |
| 2 (280/26) | 3×35 | 29.0 | 2174 | 500MCM (1225/24) |
1×240 | 32.3 | 2780 |
| 1(400/26) | 3×50 | 32.8 | 2809 | - | 1×300 | 36.6 | 3490 |
| 16(30/30) | 4G1.5 | 14.6 | 395 | - | 1×400 | 41.5 | 4645 |
| 14(50/30) | 4G2.5 | 15.4 | 458 | ||||
| 12(56/28) | 4G4 | 16.8 | 558 | ||||
| 10(84/28) | 4G6 | 18.2 | 675 | ||||
| 8(80/26) | 4G10 | 20.4 | 908 | ||||
| 6(128/26) | 4×16 | 24.5 | 1527 | ||||
| 4(200/26) | 4×25 | 28.7 | 2083 | ||||
| 2(280/26) | 4×35 | 30.9 | 2582 | ||||
