XHHW/CPE, 3-core, 600V,Type TC Power Cable
Application
XHHW/CPE, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC is listed for direct burial and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used in wet and dry locations at temperatures not to exceed 90 °C.
Compliances
- UL 1277 - Electrical Power and Control Tray Cables
- UL 1685 - UL CT Flame Exposure Test (70,000 Btu/hr)
- ICEA S-58-679 Method 4
- ICEA S-95-658 Construction requirements
- IEEE 1202/FT4 - Flame Test of Cables for Use in Cable Tray in Industrial and Commercial Occupancies (70,000 Btu/hr)

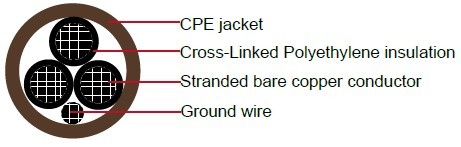

Construction
| Conductor |
Stranded bare annealed copper (Type XHHW-2) |
| Insulation |
Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE) |
| Ground Wire |
Bare annealed copper (Type XHHW-2) |
| Jacket |
Flame retardant, moisture and sunlight resistant CPE (PVC or LSOH are available upon request) |
| Color |
Upon request, black is preferable |
Parameters
| AWG or kcmil |
Strand |
Ground Wire Size |
Nominal jacket Thickness |
Nominal Overall Diameter |
Cable Weight |
| AWG |
Inch/mm |
Inch/mm |
Lbs/kft |
kg/km |
| 8 |
7 |
10 |
0.060 |
1.52 |
0.681 |
17.30 |
327 |
486 |
| 6 |
7 |
8 |
0.060 |
1.52 |
0.766 |
19.46 |
465 |
691 |
| 4 |
7 |
8 |
0.060 |
1.52 |
0.797 |
20.24 |
610 |
907 |
| 2 |
7 |
6 |
0.080 |
2.03 |
0.96 |
24.38 |
958 |
1425 |
| 1 |
19 |
6 |
0.080 |
2.03 |
1.097 |
27.86 |
1169 |
1739 |
| 1/0 |
19 |
6 |
0.080 |
2.03 |
1.182 |
30.02 |
1426 |
2121 |
| 2/0 |
19 |
6 |
0.080 |
2.03 |
1.277 |
32.44 |
1711 |
2546 |
| 3/0 |
19 |
4 |
0.080 |
2.03 |
1.385 |
35.18 |
2144 |
3190 |
| 4/0 |
19 |
4 |
0.080 |
2.03 |
1.506 |
38.25 |
2591 |
3855 |
| 250 |
37 |
4 |
0.080 |
2.03 |
1.653 |
41.99 |
3036 |
4517 |
| 350 |
37 |
3 |
0.110 |
2.79 |
1.935 |
49.15 |
4231 |
6295 |
| 500 |
37 |
2 |
0.110 |
2.79 |
2.214 |
56.24 |
5853 |
8709 |
| 750 |
61 |
1 |
0.110 |
2.79 |
2.663 |
67.64 |
8568 |
12750 |
