Marine Cables to NEK606
P16 IFLI 250 V
Applications
These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.
Standards
- IEC 60092-353
- IEC 60092-351
- IEC 60092-359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

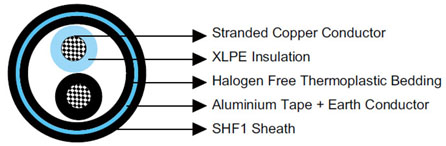

Construction
| Conductors |
Circular stranded copper wire to IEC 60228 class 2. |
| Insulation |
XLPE. |
| Bedding |
Halogen free thermoplastic compound. |
| Metal Screen |
Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor. |
| Outer Sheath |
Halogen free thermoplastic compound, SHF1, coloured grey. |
Electrical Characteristics
| Nominal Cross Section Area |
mm² |
2.5 |
| Maximum Resistant@20℃ |
Ω/km |
7.41 |
| Continuous Current Rating@45℃2 Core |
A |
26 |
| Short Circuit Current 1s |
A |
360 |
| Operating Voltage |
V |
250 |
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation) |
| |
6×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +90℃ |
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Cross section(mm²) |
Nominal Insulation Thickness (mm) |
Nominal Sheath Thickness (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| Inner |
Outer |
| 2×1×2.5 |
0.7 |
1.1 |
1.2 |
10.0 |
180 |
