Marine Cables to NEK606
S16 BFOU-HCF(c) 250 V
Applications
These cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100℃hydrocarbon fire.
Standards
- IEC 60092-376
- IEC 60092-351
- IEC 60092-359
- IEC 60331-21
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1,2
- IEC 61034-1,2
- NEK 606:2004

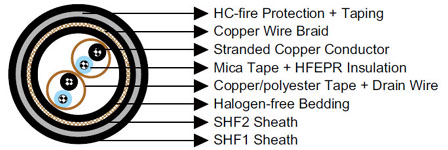

Construction
| Conductors |
Circular tinned stranded copper wire to IEC 60228 class 2. |
| Insulation |
Mica tape + Halogen free EPR compound. |
| Twinning |
Colour coded cores twisted together. |
| Collective Shielding |
Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. |
| |
Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors. |
| Bedding |
Halogen free compound. |
| Armour |
Tinned copper wire braid. |
| Outer Sheath1 |
Halogen free thermosetting compound, SHF2. |
| HC-fire protection |
Extruded thermoplastic fire protection compound. |
| Taping |
Lapped glass fibre tape. |
| Outer Sheath2 |
Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe). |
Electrical Characteristics
| Nominal Cross Section Area |
mm² |
1.5 |
| Nominal Conductor Diameter |
mm |
1.6 |
| Maximum Resistant@20℃ |
Ω/km |
12.9 |
| Mutual Capacitance |
nF/km |
85 |
| Nominal Inductance@1KHz |
MH/km |
0.667 |
| Operating Voltage |
V |
250 |
Mechanical and Thermal Properties
| Bending Radius |
20×OD (during installation) |
| |
12×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +90℃ |
Dimensions and Weight
| Construction No. of elements×No. of cores in element×Cross section(mm²) |
Nominal Insulation Thickness (mm) |
Nominal Diameter Over Bedding (mm) |
Nominal Diameter Over Sheath1 (mm) |
Nominal Overall Diameter (mm) |
Nominal Weight (kg/km) |
| 2×2×1.5 |
0.7 |
13.0 |
16.4 |
44.5 |
2400 |
| 4×2×1.5 |
0.7 |
15.0 |
19.9 |
46.5 |
2650 |
| 8×2×1.5 |
0.7 |
20.5 |
25.3 |
53.0 |
3570 |
| 12×2×1.5 |
0.7 |
23.5 |
29.6 |
57.0 |
4160 |
