9YSLCY-JB

9YSLCY-JB 9YSLCY-JB

Application

These cables are double shielded, large gauge size PVC motor supply cable. Polypropylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance
performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the
automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences. For medium mechanical stresses found indoors in dry, moist and wet areas.

Standard

UL AWM 2570 or 20886, VW-1; CSA AWM I/II A/B, FT-1; UL/CSA rated 1kV 80 Deg C.; VDE 0250, VDE
0207, VDE 0276; EMC to EN 55011; EMC to VDE-0875 part-11; CE Low Voltage Directive 73/23/EEC and
93/68/EEC, ROHS compliant

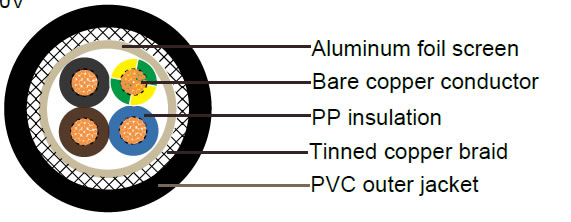

Cable construction

- Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5
- Polypropylene (PP) insulation
- Colours according to HD 308 S2(VDE 0293- 308)
- Special aluminum foil screening
- Tinned copper braiding, coverage approx. 85%
- Transparent PVC sheath made of PVC compound YM2 acc. VDE 0207 -5, leadfree, flame retardant & selfextinguishing

Technical Characteristics

- Working voltage: IEC 600/1000V / UL & CSA 1000V
- Test voltage: 4000 volts
- Minimum bending radius: 15 x Ø
- Flexing temperature: -5º C to +80º C
- Fixed installation temperature: - 40º C to +80º C
- Flame retardant: IEC 60332.1 VW-1
- Insulation resistance: >20 GΩ x km

Cable Parameter

AWG

No. of Cores x
Nominal Cross
Sectional Area
# x mm²

Nominal Overall
Diameter mm

Copper Weight kg / km

Cable Weight kg / km

16(30/30)

4 G 1.5

10.5

87

230

14(50/30)

4 G 2.5

11.8

133

300

12(56/28)

4 G 4

13.3

213

485

10(84/28)

4 G 6

14.9

298

630

8(80/26)

4 G 10

17.7

460

860

6(128/26)

4 G 16

21.5

707

1290

4(200/26)

4 G 25

26.3

1100

1860

2(280/26)

4 G 35

29.7

1542

2610

1(400/26)

4 G 50

34.1

2206

2950

2/0(356/24)

4 G 95

40.9

3002

3950

3/0(485/24)

4 G 95

45.4

4004

5300

4/0(614/24)

4 G 120

49.8

5108

6600

300 MCM (765/24)

4 G 150

56.1

6225

7043

350 MCM (944/24)

4 G 185

61.4

7568

8384

500 MCM
(1225/24)

4 G 240

67.9

9940

12150
