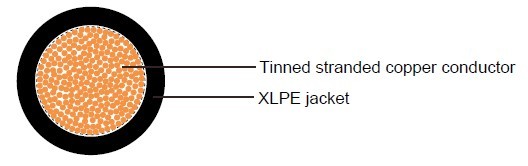

Conductor

S

Bunched tinned annealed stranded copper, class 5 according to IEC 60228

Insulation

CP
YP

85°C XLPE/
75°C PVC as per JIS C 3410

Conductor

Thick. of insulation

Nom. overall dia.

Tolerance

Cable Weight

Size

Construction

O.D

mm²

No./mm

mm

mm

mm

mm

kg/km

1.5

30/0.25

1.58

0.9

3.7

0.4

26

2.5

49/0.25

2.02

1

4.3

0.4

38

4

55/0.30

2.57

1

4.8

0.4

55

6

82/0.30

3.14

1

5.3

0.4

75

10

80/0.40

4.13

1.1

6.6

0.4

125

16

7/18/0.40

5.88

1.1

8.3

0.4

190

25

7/28/0.40

7.32

1.2

10

0.4

280

35

7/39/0.40

8.67

1.4

11.8

0.5

390

50

19/21/0.40

10.3

1.4

13.4

0.5

550

70

19/19/0.50

12.2

1.6

15.7

0.6

770

95

19/25/0.50

14

1.7

17.7

0.7

1000

Conductor

Thick. of insulation

Nom. overall dia.

Tolerance

Cable Weight

Size

Construction

O.D

mm²

No./mm

mm

mm

mm

mm

kg/km

0.75

24/0.20

1.13

1.2

3.8

0.4

21

1

32/0.20

1.27

1.2

3.9

0.4

24

1.5

30/0.25

1.58

1.2

4.2

0.4

30

2.5

49/0.25

2.02

1.2

4.7

0.4

41

4

55/0.30

2.57

1.2

5.2

0.4

60

6

82/0.30

3.14

1.2

5.8

0.4

80

10

80/0.40

4.13

1.2

6.8

0.4

125

16

7/18/0.40

5.88

1.3

8.7

0.4

195
