Multipair Overall Screened Cables-Belden Equivalent 8720

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

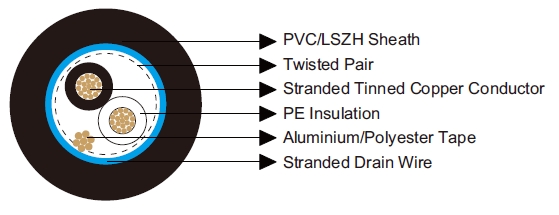

Construction

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black, Clear.

Electrical & Mechanical Characteristics

AWG



14

Conductor Construction



19x0.36

UL Style



20253

Maximum Conductor Resistance

Ω/km

10

Voltage Rating

V

600

Nominal Capacitance Conductor to Conductor

pF/m

79

Nominal Capacitance Conductor to Screen

pF/m

154

Bending Radius



10xOverall Diameter

Operating Temperature

-20~80

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE8720V

1

0.81

0.89

9.0

BE8720H

1

0.81

0.89

9.0
