Multipair Overall Screened Cables-Belden Equivalent 9515

Application

These multipair overall screened cables have pairs laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

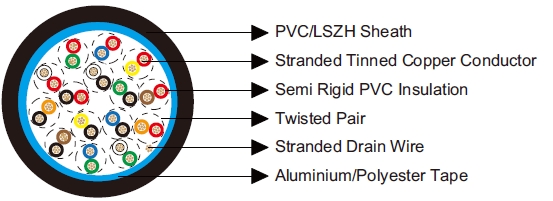

Construction

Conductor: Tinned copper wire.

Insulation: Semi Rigid PVC.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black/Red, Black/White, Black/Green, Black/Blue, Black/Yellow, Black/Brown, Black/Orange, Red/White, Red/Green, Red/Blue, Red/Yellow, Red/Brown, Red/Orange, Green/White, Green/Blue.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.2

UL Style



2464

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

98

Nominal Capacitance Conductor to Screen

pF/m

164

Bending Radius



10xOverall Diameter

Operating Temperature

-30~80

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9515V

15

0.25

1.02

10.6

BE9515H

15

0.25

1.02

10.6
