Multicore Overall Screened Cables-Belden Equivalent 9537

Application

These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

Construction

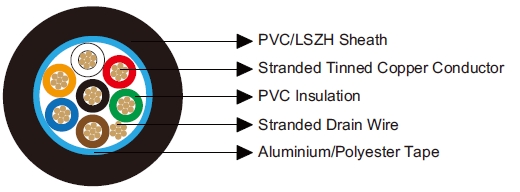

Conductor: Tinned copper wire.

Insulation: PVC.

Overall Screen: Aluminium/Polyester Tape.

Drain Wire: Stranded Tinned Copper, 7x0.20.

Sheath: PVC/LSZH.

Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.20

UL Style



2464

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

300

Nominal Capacitance Conductor to Conductor

pF/m

108

Nominal Capacitance Conductor to Screen

pF/m

213

Bending Radius



10xOverall Diameter

Operating Temperature

-30~80

Dimensions

Ordering Code

No. of Cores

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9537V

7

0.25

0.81

5.3

BE9537H

7

0.25

0.81

5.3
