Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9836

Application

These cables have pairs laid up in a foil/braid screen, suitable for RS 232 & RS 422 applications.

Construction

Conductor: Tinned copper wire.

Insulation: PE.

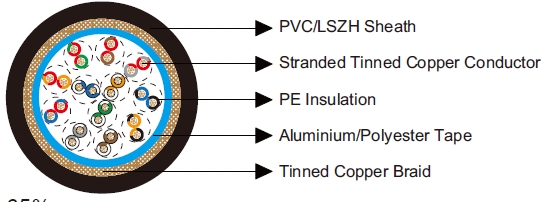

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/ Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black.

Electrical & Mechanical Characteristics

AWG



24

Conductor Construction



7x0.2

UL Style



2919

Maximum Conductor Resistance

Ω/km

85

Voltage Rating

V

30

Nominal Capacitance Conductor to Conductor

pF/m

51

Nominal Capacitance Conductor to Screen

pF/m

90

Bending Radius



10xOverall Diameter

Operating Temperature

-30~80

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9836V

12

0.38

0.97

12.2

BE9836H

12

0.38

0.97

12.2
