Multipair Individually Screened Cables-Belden Equivalent 9873

Application

These cables have individually screened pairs laid up. Each individually screened pair has a 22AWG stranded tinned copper drain wire. These cables are used as computer cables.

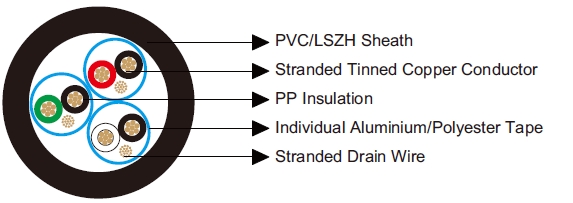

Construction

Conductor: Tinned copper wire.

Insulation: PP.

Individual Screen: Aluminium/Polyester Tape.

Drain Wire: Tinned copper wire.

Sheath: PVC/LSZH.

Insulation Colour: Black & Red, Black & White, Black & Green.

Electrical & Mechanical Characteristics

AWG



20

Conductor Construction



7x0.32

UL Style



2919

Maximum Conductor Resistance

Ω/km

34.1

Voltage Rating

V

30

Nominal Capacitance Conductor to Conductor

pF/m

98

Nominal Capacitance Conductor to Screen

pF/m

180

Bending Radius



10xOverall Diameter

Operating Temperature

-20~80

Dimensions

Ordering Code

No. of pairs

Insulation Thickness

Sheath Thickness

Overall Diameter





mm

mm

mm

BE9873V

3

0.33

0.81

8.6

BE9873H

3

0.33

0.81

8.6
