BS 6346 PVC Insulated Cables,1900/3300V

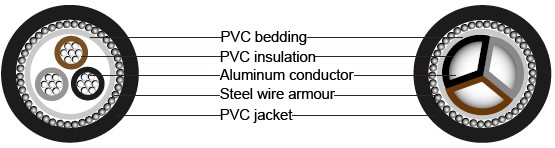

Three-core 1900/3300 V cables with solid aluminum conductors

APPLICATION

These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

CONSTRUCTION

Conductor	Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation	PVC(Polyvinyl Chloride) type TI1
Colour Code	1 Core : Brown
	2 Cores : Brown or Blue
	3 Cores : Brown, Black, Grey
	4 Cores : Blue, Brown, Black, Grey
	5 Cores : Green-yellow, Blue, Brown, Black, Grey
	Above 5 Cores : White Cores with black numbers
Filler(optional)	PVC or Polypropylene yarn
Binder Tape(optional)	Polyester (Mylar) tape
Inner Sheath/Bedding	PVC (Polyvinyl Chloride)
Armour	Single Core : AWA (Aluminum WireArmour)
	Multi Core : SWA (Steel Wire or Tape Armour)
Outer Sheath	PVC(Polyvinyl Chloride), type TM1

TECHNICAL INFORMATION

Voltage rating	1900/3300V
Temperature rating	-20°C to +60°C
Bending radius	Single core : 10 x overall diameter
	Multicores : 8 x overall diameter
Flame retardant	IEC60332 part 1, BS4066 part 1

CABLE PARAMETER

Nominal cross-sectional area	Nominal insulation thickness	Nominal bedding thickness	Nominal Armor dia.	Nominal sheath thickness	Approx.overall diameter	Approx.cable weight
mm²	mm	mm	mm	mm	mm	kg/mm
3x16	2.2	1.0	1.6	1.8	28.9	1630
3x25	2.2	1.0	1.6	1.8	31.3	1880
3x35	2.2	1.0	1.6	1.9	33.7	2145
3x35*	2.2	1.0	1.6	1.9	30.6	2145
3x50*	2.2	1.2	2.0	2.0	33.9	2880
3x70*	2.2	1.2	2.0	2.1	36.9	3340
3x95*	2.2	1.2	2.0	2.2	40.0	3870
3x120*	2.2	1.4	2.5	2.3	44.0	4980
3x150*	2.2	1.4	2.5	2.4	46.5	5585
3x185*	2.2	1.4	2.5	2.5	49.6	6250
3x240*	2.2	1.6	2.5	2.6	54.2	7315
3x300*	2.4	1.6	2.5	2.8	59.2	8365
