4x2.5 Power Cable + 2 Twisted Pairs + 2 Coax Cable Mud Resistant Composite cable

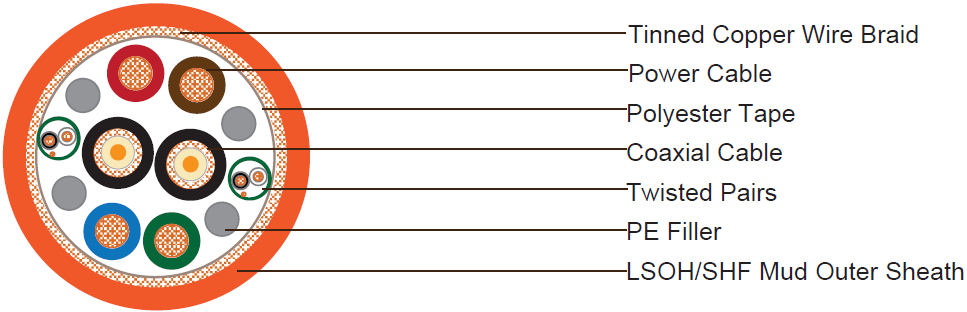

Construction
2 Coaxial Cable
| Conductor | 0.22mmsq, 7/0.20mm stranded bare copper |
| Insulation | Celluar PE, thickness 0.92mm. Norminal outer diameter 2.44mm |
| Shield | 0.12mm bare copper wire braid, coverage ca. 85% |
| Sheath | LSZH, thickness 0.45mm. Norminal outer diameter 3.82mm |
| Sheath Color | Black |
4 Power Cable
| Conductor | 2.5mmsq, 7/0.67mm stranded bare copper |
| Insulation | LSZH, thickness 0.65mm. Norminal outer diameter 3.31mm |
| Insulation Color | Red, blue, green, yellow |
2 Twisted Pairs
| Conductor | 0.22mmsq, 7/0.20mm stranded bare copper |
| Insulation | LSZH, thickness 0.25mm |
| Insulation Color | White/ blue; White/orange |
|
Shield |
Aluminum-polyester tape with 0.2mm2 copper drain wire Nominal outer diameter is 2.56mm. |
Element Assembly
| Filler | PE filler, if necessary |
| Wrapping Tape | Polyester tape |
| Shield | 0.16mm tinned copper wire braid, coverage ca. 80% |
| Outer Sheath | LSOH/SHF mud, thickness 0.8mm. Norminal outer diameter 16.7±1.0mm |
| Sheath Color | Orange |
| Cable Weight | 370kg/km |
Electrical and Physical Properties @20°C
Coaxial Cable
Impedance: 75±5Ohm (@5MHz)
Max. Attenuation: 3.3dB/100m (@5MHz) Capacity: 55pF/m nominal at 1kHz Power Cable
Conductor Resistance: 7.41Ohm/km
Insulation Resistance: ≥300 MOhmxkm
Data Pairs
Conductor Resistance: 92Ohm/km Insulation Resistance: ≥300 MOhmxkm Element Assembly
Min Bending Radius: 160mm
Operating Temperature: -40°C/+125°C
