FR2OR

Application and Description

These cables are suitable for power transport in industry, yards, residential building and handicraft. For installations on masonry and metal structures, on gangways, pipes, ducts and similar systems. For fixed installation indoors and out. Underground laying is acceptable, even if not protected. Shield guarantees an optimal protection from electromagnetic disturbs; suitable for civil and industrial places and for the transport of signals and commands.

Standard and Approval

CEI 20-11
CEI 20-29
CEI 20-21
CEI 20-37
CEI 20-52

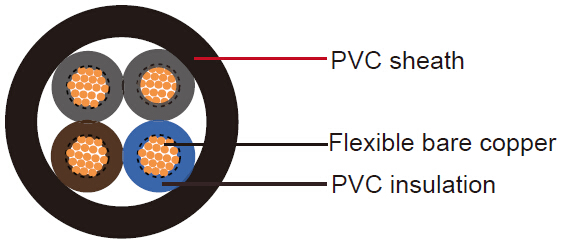

Cable Construction

Flexible bare copper class 5 CEI 20-29 conductor

PVC insulation TI2 quality

PVC sheath in RZ quality

Technical Characteristics

WORKING VOLTAGE	300/500V
TEST VOLTAGE	2000V
Minimum BENDING RADIUS	10 x Ø
FLEXIBLE TEMPERATURE	-20º C to +80º C
Minimum Installation temperature:	-20º C
FLAME RETARDANT	IEC 60332-3-22 , EN 50266-2-2 ,CEI 20-22/3-2

Cable Parameter

AWG	No. of Cores x Nominal Cross Sectional Area x mm²	Nominal Thickness of Insulation mm	Nominal Thickness of Sheath mm	Nominal Overall Diameter mm	Nominal Weight kg/km
20(16/32)	12 x 0.5	0.6	0.6	5.4	39
20(16/32)	3 x 0.5	0.6	0.6	5.7	46
20(16/32)	4 x 0.5	0.6	0.6	6.1	55
20(16/32)	5x 0.5	0.6	0.6	6.6	66
20(16/32)	6 x 0.5	0.6	0.6	7.4	79
20(16/32)	8x 0.5	0.6	0.6	8.1	103
20(16/32)	10 x 0.5	0.6	0.6	9.1	114
20(16/32)	12 x 0.5	0.6	0.6	9.6	134
18(24/32)	2 x 0.75	0.6	0.8	5.8	47
18(24/32)	3 x 0.75	0.6	0.8	6.1	56
18(24/32)	4x0.75	0.6	0.8	6.6	68
18(24/32)	5x0.75	0.6	0.8	7.4	85
18(24/32)	6x0.75	0.6	0.8	8.0	98
18(24/32)	8x0.75	0.6	0.8	8.8	127
18(24/32)	10x0.75	0.6	0.8	10.1	147
18(24/32)	12x0.75	0.6	0.8	10.4	169
