XHHW/XLPO, 3-core, Type TC Power Cable
Application
XHHW/XLPO, type TC Power Cable is used to supply power to motors, or for connection to other power devices in industrial settings. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Type TC Power Cable is listed for direct burial or in underground ducts and for use in Class 1, Division 2 hazardous locations and Class 1 control circuits. This cable may be used in wet and dry locations at temperatures not to exceed 90°C.
Compliances
- UL 44 -Thermoset-Insulated Wires and Cables
- UL 1277 - Electrical Power and Control Tray Cables
- UL 1581 - Flame Exposure Test (VW-1)
- ICEA S-58-679 Method 4
- UL 1685 - Flame Exposure Test
- ICEA T-29-520 - Vertical Cable Tray Flame Test
- IEEE 383 (IEEE 1202/FT4) - Flame Test
- ICEA S-95-658 (NEMA WC 70) construction requirements

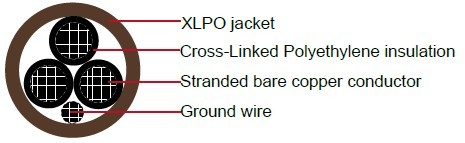

Construction
| Conductor |
Stranded bare annealed copper (Type XHHW-2) |
| Insulation |
Flame-retardant and moisture resistant Cross-Linked Polyethylene (FRXLPE) |
| Ground Wire |
Bare annealed copper (Type XHHW-2) |
| Jacket |
Flame retardant, moisture and sunlight resistant XLPO (LSOH is available upon request) |
| Color |
Upon request, black is preferable |
Parameters
| AWG or kcmil |
Strand |
Ground Wire Size |
Nominal jacketThickness |
Nominal Overall Diameter |
Cable Weight |
| AWG |
Inch/mm |
Inch/mm |
Lbs/kft |
kg/km |
| 8 |
7 |
10 |
0.060 |
1.52 |
0.681 |
17.30 |
330 |
491 |
| 6 |
7 |
8 |
0.060 |
1.52 |
0.766 |
19.46 |
468 |
697 |
| 4 |
7 |
8 |
0.060 |
1.52 |
0.797 |
20.24 |
606 |
901 |
| 2 |
7 |
6 |
0.080 |
2.03 |
0.96 |
24.38 |
954 |
1420 |
| 1 |
19 |
6 |
0.080 |
2.03 |
1.1 |
27.94 |
1173 |
1746 |
| 1/0 |
19 |
6 |
0.080 |
2.03 |
1.186 |
30.12 |
1421 |
2115 |
| 2/0 |
19 |
6 |
0.080 |
2.03 |
1.279 |
32.49 |
1704 |
2536 |
| 3/0 |
19 |
4 |
0.080 |
2.03 |
1.385 |
35.18 |
2135 |
3177 |
| 4/0 |
19 |
4 |
0.080 |
2.03 |
1.506 |
38.25 |
2580 |
3839 |
| 250 |
37 |
4 |
0.080 |
2.03 |
1.653 |
41.99 |
3021 |
4496 |
| 300 |
37 |
3 |
0.110 |
2.79 |
1.827 |
46.41 |
3684 |
5481 |
| 350 |
37 |
3 |
0.110 |
2.79 |
1.935 |
49.15 |
4219 |
6277 |
| 400 |
37 |
3 |
0.110 |
2.79 |
2.032 |
51.61 |
4747 |
7064 |
| 500 |
37 |
2 |
0.110 |
2.79 |
2.214 |
56.24 |
5755 |
8564 |
| 750 |
61 |
1 |
0.110 |
2.79 |
2.663 |
67.64 |
8543 |
12711 |
