MC Cable

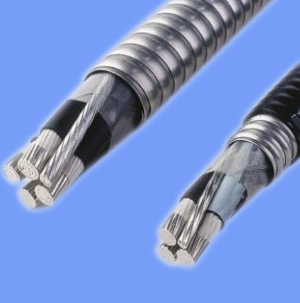

Aluminum MC Cable with PVC - Direct Burial
Applications:
These cables are designed for Direct Burial. They can be directly buried in the earth without the protection of conduit or cable tray. They are manufactured with Aluminum XHHW Wires and an insulated Aluminum XHHW ground wire.
Construction:
- Conductor: Stranded Aluminum Strands 6 - 750 mcm
- Insulation: XHHW insulation
- Jacket: Aluminum Metal Clad Jacket
Properties:
- Voltage rating: 600V
- Temperature rating: 90 C
Parameters:
Type |
AWG |
Strand |
Cable Weight |
| Lbs/kft |
Kg/km |
| 3 Cores + Ground |
| MC PVC 6/3 |
6 AWG |
19 |
237 |
352.8 |
| MC PVC 4/3 |
4 AWG |
19 |
298 |
443.6 |
| MC PVC 2/3 |
2 AWG |
19 |
411 |
611.8 |
| MC PVC 1/3 |
1 AWG |
19 |
496 |
738.3 |
| MC PVC 1/0 3 |
1/0 AWG |
19 |
578 |
860.4 |
| MC PVC 2/0 3 |
2/0 AWG |
19 |
678 |
1009.2 |
| MC PVC 3/0 3 |
3/0 AWG |
19 |
833 |
1239.9 |
| MC PVC 4/0 3 |
4/0 AWG |
19 |
1089 |
1621.0 |
| MC PVC 250 3 |
250 MCM |
19 |
1275 |
1897.9 |
| MC PVC 350 3 |
350 MCM |
19 |
1653 |
2460.5 |
| MC PVC 400 3 |
400 MCM |
19 |
1830 |
2724.0 |
| MC PVC 500 3 |
500 MCM |
19 |
2177 |
3240.5 |
| MC PVC 600 3 |
600 MCM |
19 |
2608 |
3882.1 |
| MC PVC 750 3 |
750 MCM |
19 |
3118 |
4641.2 |
| 4Cores + Ground |
| MC PVC 6/4 |
6 AWG |
19 |
297 |
442.1 |
| MC PVC 4/4 |
4 AWG |
19 |
372 |
553.7 |
| MC PVC 2/4 |
2 AWG |
19 |
508 |
756.2 |
| MC PVC 1/4 |
1 AWG |
19 |
619 |
921.4 |
| MC PVC 1/0 4 |
1/0 AWG |
19 |
727 |
1082.2 |
| MC PVC 2/0 4 |
2/0 AWG |
19 |
858 |
1277.2 |
| MC PVC 3/0 4 |
3/0 AWG |
19 |
1138 |
1693.9 |
| MC PVC 4/0 4 |
4/0 AWG |
19 |
1374 |
2045.2 |
| MC PVC 250 4 |
250 MCM |
19 |
1634 |
2432.2 |
| MC PVC 350 4 |
350 MCM |
19 |
2129 |
3169.1 |
| MC PVC 500 4 |
500 MCM |
19 |
2877 |
4282.5 |
| MC PVC 600 4 |
600 MCM |
19 |
3415 |
5083.3 |
| MC PVC 750 4 |
750 MCM |
19 |
4089 |
6086.6 |
