 Industrial Cables
H05BN4-F
Application and Description
These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar)
sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in
weather conditions and under weak mechanical stress, for example for power supply to small appliances
in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. They are also
suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C.
While high temperature use, skin contact must be avoided.
Standard and Approval
<HAR> CENELEC HD 22.12 S1, CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage

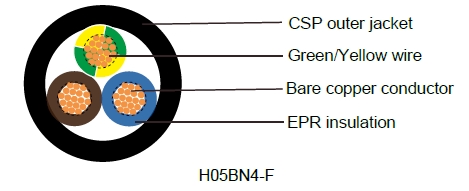

Cable Construction
- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- EPR(Ethylene Propylene Rubber) rubber EI7 insulation
- Color code VDE-0293-308
- CSP(Chlorosulphonated Polyethylene) outer jacket EM7
Technical Characteristics
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 6.0 x Ø
- Fixed bending radius: 4.0 x Ø
- Temperature Range: -20º C to +90º C
- Maximum Short Circuit Temperature: +250º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km

Cable Parameter
AWG |
No. of Cores x Nominal Cross Sectional Area # x mm² |
Nominal Thickness of Insulation mm |
Nominal Thickness of Sheath mm |
Nominal Overall Diameter mm |
Nominal Copper Weight kg/Km |
Nominal Weight kg/Km |
|
2 x 0.75 |
|
0.8 |
6.1 |
29 |
54 |
18(24/32) |
3 x 0.75 |
0.6 |
0.9 |
6.7 |
43 |
68 |
18(24/32) |
4 x 0.75 |
0.6 |
0.9 |
7.3 |
58 |
82 |
18(24/32) |
5 x 0.75 |
0.6 |
1.0 |
8.1 |
72 |
108 |
|
2 x 1 |
0.6 |
0.9 |
6.6 |
19 |
65 |
17(32/32) |
3 x 1 |
0.6 |
0.9 |
7.0 |
29 |
78 |
17(32/32) |
4 x 1 |
0.6 |
0.9 |
7.6 |
38 |
95 |
17(32/32) |
5 x 1 |
0.6 |
1.0 |
8.5 |
|
125 |
|
