Spiral Cables

PVC spiral cables

PUR Spiral Cables
Neoprene Spiral Cables
Rubber TPE Spiral Cables
Polyurethane Spiral Cables

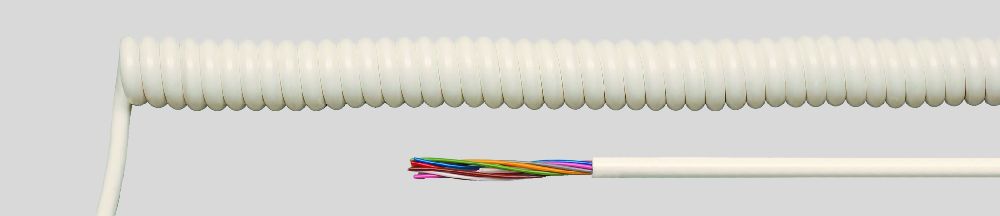

PVC Spiral Cables

PVC Spiral Cables

Application:Lighting industry ,Data installations ,Shops

Temperature range:-5°C to +70°C

Test voltage:2000 V

Expansion ratio 1:3:straight ends 200/200

Nominal voltage:H03VV-F 300/300 V (up to 1 mm²) ,H05VV-F 300/500 V (from 1.5 mm²)

Cable Construction
:Bare copper and fine wire conductors to VDE 0295 cl. 5 ,PVC conductor insulation,

Conductors stranded ,Conductors color coded to VDE 0293 ,PVC outer jacket ,white or black

Description & No. Conductors x cross-sec. mm² Spiral Length unexpanded Cable Ø (mm) Spiral Outer Ø (mm) Cop. weight
kg/km
 PVC Spiral Cable 2 x 0.75 200 mm 6.2 21.4 34.6
 PVC Spiral Cable 2 x 0.75 400 mm 6.2 21.4 63.4
 PVC Spiral Cable 2 x 0.75 600 mm 6.2 21.4 92.2
 PVC Spiral Cable 2 x 0.75 800 mm 6.2 21.4 121.0
 PVC Spiral Cable 2 x 0.75 1000 mm 6.2 21.4 149.8
 PVC Spiral Cable 2 x 0.75 1200 mm 6.2 21.4 178.6
 PVC Spiral Cable 2 x 0.75 1400 mm 6.2 21.4 207.4
 PVC Spiral Cable 3 x 0.75 200 mm 6.6 22.2 51.9
 PVC Spiral Cable 3 x 0.75 400 mm 6.6 22.2 95.1
 PVC Spiral Cable 3 x 0.75 600 mm 6.6 22.2 138.3
 PVC Spiral Cable 3 x 0.75 800 mm 6.6 22.2 181.5
 PVC Spiral Cable 3 x 0.75 1000 mm 6.6 22.2 224.7
 PVC Spiral Cable 3 x 0.75 1200 mm 6.6 22.2 267.8
 PVC Spiral Cable 3 x 0.75 1400 mm 6.6 22.2 311.1
 PVC Spiral Cable 2 x 1.0 200 mm 6.6 22.2 43.2
 PVC Spiral Cable 2 x 1.0 400 mm 6.6 22.2 62.3
 PVC Spiral Cable 2 x 1.0 600 mm 6.6 22.2 122.8
 PVC Spiral Cable 2 x 1.0 800 mm 6.6 22.2 161.3
 PVC Spiral Cable 2 x 1.0 1000 mm 6.6 22.2 199.7
 PVC Spiral Cable 2 x 1.0 1200 mm 6.6 22.2 238.1
 PVC Spiral Cable 2 x 1.0 1400 mm 6.6 22.2 276.5
 PVC Spiral Cable 2 x 1.5 200 mm 7.7 26.4 69.6
 PVC Spiral Cable 2 x 1.5 400 mm 7.7 26.4 127.0
 PVC Spiral Cable 2 x 1.5 600 mm 7.7 26.4 185.6
 PVC Spiral Cable 2 x 1.5 800 mm 7.7 26.4 243.6
 PVC Spiral Cable 2 x 1.5 1000 mm 7.7 26.4 301.6
 PVC Spiral Cable 2 x 1.5 1200 mm 7.7 26.4 359.6
 PVC Spiral Cable 2 x 1.5 1400 mm 7.7 26.4 417.6
 PVC Spiral Cable 3 x 1.5 200 mm 8.5 29.0 103.2
 PVC Spiral Cable 3 x 1.5 400 mm 8.5 29.0 189.2
 PVC Spiral Cable 3 x 1.5 600 mm 8.5 29.0 275.2
 PVC Spiral Cable 3 x 1.5 800 mm 8.5 29.0 361.2
 PVC Spiral Cable 3 x 1.5 1000 mm 8.5 29.0 447.2
 PVC Spiral Cable 3 x 1.5 1200 mm 8.5 29.0 533.2
 PVC Spiral Cable 3 x 1.5 1400 mm 8.5 29.0 619.2
