Anwendung

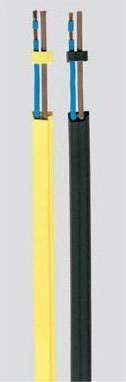

AS components are interconnected with this special system cable. With the AS interface, the cable assembly from the control system to the sensor/actuator is not needed. The AS interface is the field bus system that transmits both data and power in one single cable. With fast contacting in penetration technique, the possibility of errors in cabling is largely reduced. The special outer jacket provides protection against bio-oil, grease, and refrigerant lubricants, and the cable is therefore even suitable for applications in wet surroundings, in machinery and plant construction, as well as in the machine tool and automotive industry.
| Typ/Bereich der Anwendung |
Actuator Sensor Interface |
Actuator Sensor Interface |
| Kabel-Bau |
2x1.5 mm2 |
2x1.5 mm2 |
| Inner Leiterdurchmesser1: |
Copper, tinned |
Copper, tinned |
| Dirigent Isolierung: |
Rubber Compound |
Rubber Compound |
| Dirigent Farben: |
blue, brown |
blue, brown |
| Strandung Element: |
- |
- |
| Abschirmung1: |
- |
- |
| Abschirmung2: |
- |
- |
| Total Shielding: |
- |
- |
| Outer Jacket Material: |
EPDM |
EPDM |
| Outer Jacket Color: |
Yellow similar to RAL 1023 |
Black similar to RAL 9005 |
Elektrische Daten
| Leiterwiderstand: |
13.7 Ohm/km max. |
13.7 Ohm/km max. |
| Isolationswiderstand: |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
| Nennspannung: |
32 V |
48 V |
| Test Spannung: |
1.0 kV at 15 min. |
1.0 kV at 15 min. |
Technische Daten
| Weight: |
approximately 70.0 kg/km |
approximately 70.0 kg/km |
| Min. Bending Radius (Laying): |
30.0 mm |
30.0 mm |
| Operating Temp.Range, min.: |
- 40 °C |
- 40 °C |
| Operating Temp.Range, max.: |
+85 °C |
+85 °C |
| Caloric Load, approx. value: |
0.98 MJ/m |
0.98 MJ/m |
| Copper Value: |
31.0 kg/km |
31.0 kg/km |
Normen
| Applicable Standards: |
ASI Standard |
ASI Standard |
