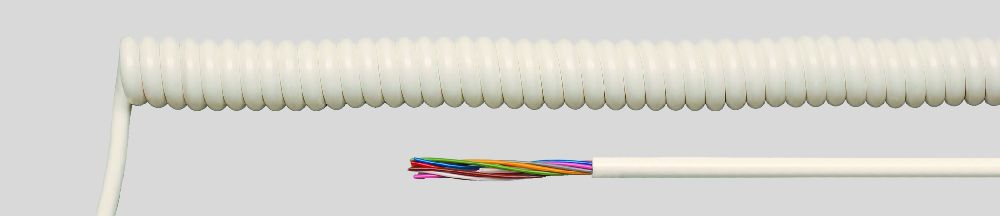

 PVC Spiral Cables
Anwendung:Lighting industry ,Data installations ,Shops
Temperaturbereich:-5°C to +70°C
Test voltage:2000 V
Expansion ratio 1:3:straight ends 200/200
Nennspannung:H03VV-F 300/300 V (up to 1 mm²) ,H05VV-F 300/500 V (from 1.5 mm²)
Kabel-Bau:Bare copper and fine wire conductors to VDE 0295 cl. 5 ,PVC conductor insulation,
Conductors stranded ,Conductors color coded to VDE 0293 ,PVC outer jacket ,white or black
| Beschreibung & Anzahl Leiter x cross-sec. mm² |
Spiral Länge unexpanded (mm) |
Kabel Ø (mm) |
Spiral-Außen Ø (mm) |
Cop. Gewicht
kg/km |
| PVC Spiral Cable 2 x 0.75 |
200 mm |
6.2 |
21.4 |
34.6 |
| PVC Spiral Cable 2 x 0.75 |
400 mm |
6.2 |
21.4 |
63.4 |
| PVC Spiral Cable 2 x 0.75 |
600 mm |
6.2 |
21.4 |
92.2 |
| PVC Spiral Cable 2 x 0.75 |
800 mm |
6.2 |
21.4 |
121.0 |
| PVC Spiral Cable 2 x 0.75 |
1000 mm |
6.2 |
21.4 |
149.8 |
| PVC Spiral Cable 2 x 0.75 |
1200 mm |
6.2 |
21.4 |
178.6 |
| PVC Spiral Cable 2 x 0.75 |
1400 mm |
6.2 |
21.4 |
207.4 |
| PVC Spiral Cable 3 x 0.75 |
200 mm |
6.6 |
22.2 |
51.9 |
| PVC Spiral Cable 3 x 0.75 |
400 mm |
6.6 |
22.2 |
95.1 |
| PVC Spiral Cable 3 x 0.75 |
600 mm |
6.6 |
22.2 |
138.3 |
| PVC Spiral Cable 3 x 0.75 |
800 mm |
6.6 |
22.2 |
181.5 |
| PVC Spiral Cable 3 x 0.75 |
1000 mm |
6.6 |
22.2 |
224.7 |
| PVC Spiral Cable 3 x 0.75 |
1200 mm |
6.6 |
22.2 |
267.8 |
| PVC Spiral Cable 3 x 0.75 |
1400 mm |
6.6 |
22.2 |
311.1 |
| PVC Spiral Cable 2 x 1.0 |
200 mm |
6.6 |
22.2 |
43.2 |
| PVC Spiral Cable 2 x 1.0 |
400 mm |
6.6 |
22.2 |
62.3 |
| PVC Spiral Cable 2 x 1.0 |
600 mm |
6.6 |
22.2 |
122.8 |
| PVC Spiral Cable 2 x 1.0 |
800 mm |
6.6 |
22.2 |
161.3 |
| PVC Spiral Cable 2 x 1.0 |
1000 mm |
6.6 |
22.2 |
199.7 |
| PVC Spiral Cable 2 x 1.0 |
1200 mm |
6.6 |
22.2 |
238.1 |
| PVC Spiral Cable 2 x 1.0 |
1400 mm |
6.6 |
22.2 |
276.5 |
| PVC Spiral Cable 2 x 1.5 |
200 mm |
7.7 |
26.4 |
69.6 |
| PVC Spiral Cable 2 x 1.5 |
400 mm |
7.7 |
26.4 |
127.0 |
| PVC Spiral Cable 2 x 1.5 |
600 mm |
7.7 |
26.4 |
185.6 |
| PVC Spiral Cable 2 x 1.5 |
800 mm |
7.7 |
26.4 |
243.6 |
| PVC Spiral Cable 2 x 1.5 |
1000 mm |
7.7 |
26.4 |
301.6 |
| PVC Spiral Cable 2 x 1.5 |
1200 mm |
7.7 |
26.4 |
359.6 |
| PVC Spiral Cable 2 x 1.5 |
1400 mm |
7.7 |
26.4 |
417.6 |
| PVC Spiral Cable 3 x 1.5 |
200 mm |
8.5 |
29.0 |
103.2 |
| PVC Spiral Cable 3 x 1.5 |
400 mm |
8.5 |
29.0 |
189.2 |
| PVC Spiral Cable 3 x 1.5 |
600 mm |
8.5 |
29.0 |
275.2 |
| PVC Spiral Cable 3 x 1.5 |
800 mm |
8.5 |
29.0 |
361.2 |
| PVC Spiral Cable 3 x 1.5 |
1000 mm |
8.5 |
29.0 |
447.2 |
| PVC Spiral Cable 3 x 1.5 |
1200 mm |
8.5 |
29.0 |
533.2 |
| PVC Spiral Cable 3 x 1.5 |
1400 mm |
8.5 |
29.0 |
619.2 |
|
