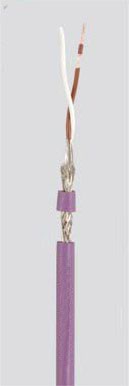

Anwendung
The CAN bus series (control area network) is a variable field bus system. In the area of automation technology, complex controllers and control units are networked. Industries, such as the textile or construction machine industry and the medical technology, use this series. The above mentioned types are suitable for fixed laying in indoor applications. This is also a very economical solution of a BUS system.
| Type/Area of Application |
Fixed Installation, Indoor |
Fixed Installation, Indoor |
| Kabel-Bau |
1x2x0.50 mm2 (stranded) |
4x1x0.50 mm2 (stranded) |
| Inner Leiterdurchmesser1: |
Copper, bare (AWG 20/7) |
Copper, bare (AWG 20/7) |
| Dirigent Isolierung: |
Foam-skin-PE |
Foam-skin-PE |
| Dirigent Farben: |
white, brown |
white, brown, green-yellow |
| Stranding Element: |
Double conductor |
Star quad |
| Abschirmung1: |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
| Abschirmung 2: |
- |
- |
| Insgesamt Abschirmung: |
Copper braid, tinned |
Copper braid, tinned |
| Outer Jacket Material: |
PVC |
PVC |
| Outer Diameter: |
7.0 mm ± 0.2 mm |
8.5 mm ± 0.2 mm |
| Outer Jacket Color: |
Violet similar to RAL 4001 |
Violet similar to RAL 4001 |
Elektrische Daten
| Charakteristische Impedanz: |
120 Ohm ± 10% |
120 Ohm ± 10% |
| Leiterwiderstand: |
37.0 Ohm/km max. |
37.0 Ohm/km max. |
| Isolationswiderstand: |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
| Gegenseitige Kapazität: |
50.0 nF/km nom. |
50.0 nF/km nom. |
| Prüfspannung: |
1.5 kV |
1.5 kV |
Technische Daten
| Gewicht: |
approximately 69.0 kg/km |
approximately 100.0 kg/km |
| Min. Bending Radius (Laying): |
105.0 mm |
128.0 mm |
| Operating Temp.Range, min.: |
- 40 °C |
- 40 °C |
| Operating Temp.Range, max.: |
+70 °C |
+70 °C |
| Caloric Load, approx. value: |
1.09 MJ/m |
1.64 MJ/m |
| Copper Value: |
30.0 kg/km |
44.0 kg/km |
Normen
| Applicable Standards: |
Profibus acc. to DIN 19245 T3 and EN 50170 |
Profibus acc. to DIN 19245 T3 and EN 50170 |
| UL Style: |
UL Style 2571 |
UL Style 2571 |
