Kabel-Bau

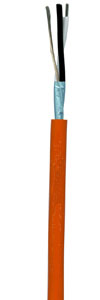

Tinned copper conductors 22(7)AWG 0.22mm², foam polyolefin insulation, aluminium/polyester foil screen, tinned copper drain wire (22AWG) PVC sheath on standard cables.
Technische Informationen
| Dirigent |
22(7)AWG tinned copper |
| Core Identifizierung |
White & Black |
| Mantel Farbe |
Orange |
| Betriebstemperatur |
75°C |
| Spannung |
Working : 300V |
| Velocity of propagation |
78% |
| Impedanz |
150 Ω |
| Leiterwiderstand |
56.0Ω/km @ 20°C |
| Nenn-Dämpfung |
MHz |
dB/100m |
|
0.01 |
0.59 |
|
0.10 |
1.12 |
|
0.50 |
2.20 |
|
1.00 |
3.05 |
|
