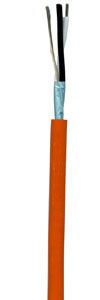

Kabel-Bau
Tinned copper conductors 18(7)AWG 0.88mm², polyolefin insulation, aluminium/polyester foil screen, tinned copper drain wire (20AWG) PVC sheath on standard cables.
Technische Informationen
| Dirigent |
18(7)AWG tinned copper |
| Core Identifizierung |
White & Black |
| Mantel Farbe |
Orange |
| Betriebstemperatur |
75°C |
| Spannung |
Working : 300V |
| Velocity of propagation |
66% |
| Impedanz |
100 Ω |
| Leiterwiderstand |
17.87Ω/km @ 20°C |
| Nenn-Dämpfung |
MHz |
dB/100m |
|
0.01 |
0.20 |
|
0.10 |
0.62 |
|
0.50 |
2.46 |
|
1.00 |
3.45 |
Technische Daten
Anzahl der Paare |
AWG |
CSA
mm² |
Gewicht
Kg/Km |
O/D
mm |
Capacitance
C/C pF/m |
Capacitance
C/S pF/m |
| 1 |
18(7) |
0.88 |
51 |
6.4 |
82 |
147 |
| 1 |
18(7) |
0.88 |
51 |
6.4 |
82 |
147 |
| 1 |
18(7) |
0.88 |
246 |
9.6 |
82 |
147 |
