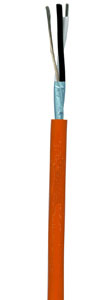

Kabel-Bau
Tinned copper conductors 22(7)AWG 0.34mm², polyolefin insulation, aluminium/polyester foil screen, tinned copper drain wire (22AWG) PVC sheath on standard cables.
Technische Informationen
| Dirigent |
22(7)AWG tinned copper |
| Core Identifizierung |
White & Black |
| Mantel Farbe |
Orange |
| Betriebstemperatur |
75°C |
| Spannung |
Working : 300V |
| Velocity of propagation |
66% |
| Impedanz |
150 Ω |
| Leiterwiderstand |
56.0Ω/km @ 20°C |
| Nenn-Dämpfung |
MHz |
dB/100m |
|
0.01 |
0.39 |
|
0.10 |
0.66 |
|
0.50 |
2.99 |
|
1.00 |
4.53 |
Technische Daten
Anzahl der Paare |
AWG |
CSA
mm² |
Gewicht
Kg/Km |
O/D
mm |
Capacitance
C/C pF/m |
Capacitance
C/S pF/m |
| 1 |
22(7) |
0.34 |
29 |
4.9 |
77 |
144 |
| 1 |
22(7) |
0.34 |
29 |
4.9 |
77 |
144 |
| 1 |
22(7) |
0.34 |
213 |
8.1 |
77 |
144 |
