| The Interbus open ring topology allow integration of different field devices from control level down to sensor switches over one system. Unlike traditional ring systems Interbus uses one cable to route data back and forth to all devices. Each device or unit will amplify the signal before sending it on to the next station. The data is transmitted over a 3 pair screened cable, for remote applications a composite data and power cable is available.

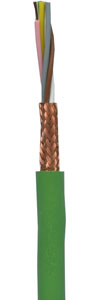

3 Pair Interbus cable
Plain copper conductors 0.22mm², PE insulation, cores twisted into pairs, pairs bunched and polyester taped, copper wire braid, PVC sheath on static cables and a PUR sheath on dynamic cables.
3 Pair + Power, Remote Interbus cable
Data cores : Plain copper conductors 0.22mm², PE insulated & twisted into pairs.
Power cores: Plain copper conductors 1.0mm² PE insulation.
Cores and pairs bunched together, polyester tape, copper wire braid, PUR sheath.
Technische Informationen
| Dirigent Identifizierung |
Pairs: Brown/White, Green/Yellow, Pink/Grey.
Cores: Red, Blue, Green. |
| Mantel Farbe |
Green or Purple* |
| Betriebstemperatur |
-30°C to +70°C flexing -30°C to +80°C static |
| Spannung |
300V |
| Geschwindigkeit der Vermehrung |
66% (data pairs) |
| Impedanz |
100 Ω |
| Capacitance |
51pF/m core to shield |
Technische Daten
Größe mm² |
O/D
mm |
Application |
| 3P 0.22 |
8.0 |
Static |
| 3P 0.22 |
8.2 |
Dynamic |
| 3P 0.22 +3C 1.0 |
9.3 |
Dynamic with remote power |
