Modbus provides a master/slave communication between intelligent automation devices. The Modbus cable has an increased jacket thickness to ensure a correct termination into the Modbus connectors.
1 x 2 x 24AWG Modbus

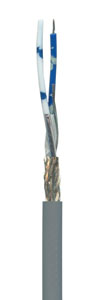

cable construction
Tinned copper conductors 24(7)AWG, polyethylene insulation, cores twisted into a pair, overall polyester, aluminium foil screen & tinned copper wire braid – 90% optical coverage, PVC or Low Smoke Halogen Free sheath.
Technische Informationen
| Core Identifizierung |
Blue/White, White/Blue |
| Betriebstemperatur |
-40°C to +60°C |
| Spannung |
Working : 30V |
| Geschwindigkeit der Vermehrung |
66% |
| Impedanz |
120Ω |
Capacitance @ 1khz
Core to core
Core to shield |
42.0pF/m
75.5pF/m |
| Attenuation |
kHz
1M
|
dB/100m
2.0 |
Technische Daten
Dirigent Strandung |
Dirigent
res. Ω/km |
Material Mantel |
Mantel Farbe |
Gewicht
Kg/Km |
O/D
mm |
| 7/0.20 |
78 |
PVC |
Grey |
63 |
8.0 |
| 7/0.20 |
78 |
LSHF |
Grey |
63 |
8.0 |
