Anwendung

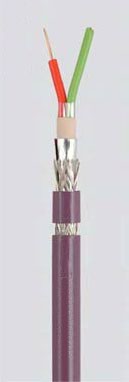

The application of these Profibus SK cables are in the cell and field area, just as for conventional types. The great advantage of this new system is the quick connection of the cable to the respective plugs. This type of processing also avoids errors. The above mentioned types are suitable for drag chains (stranded).
| Type/Area of Application |
Drag Chain Applications |
Drag Chain Applications |
| Kabel-Bau |
1x2x0.64 mm (stranded) |
1x2x0.64 mm (stranded) |
| Inner Leiterdurchmesser1: |
Copper, bare (AWG 24/19) |
Copper, bare (AWG 24/19) |
| Dirigent Isolierung: |
Foam-skin-PE |
Foam-skin-PE |
| Dirigent Farben: |
red, green |
red, green |
| Strandung Element: |
2 conductors + filler |
2 conductors + filler |
| Abschirmung1: |
Polyester foil over stranded bundle |
Polyester foil over stranded bundle |
| Abschirmung2: |
Polyester foil, aluminum-lined |
Polyester foil, aluminum-lined |
| Insgesamt Abschirmung: |
Copper braid, tinned |
Copper braid, tinned |
| Outer Jacket Material: |
PUR |
PUR |
| Outer Diameter: |
8.0 mm ± 0.4 mm |
8.0 mm ± 0.4 mm |
| Outer Jacket Color: |
Violet similar to RAL 4001 |
Petrol similar to RAL 5018 |
Elektrische Daten
| Charakteristische Impedanz: |
150 Ohm ± 10% |
150 Ohm ± 10% |
| Leiterwiderstand: |
84.0 Ohm/km max. |
84.0 Ohm/km max. |
| Isolationswiderstand: |
1.00 GOhm x km min. |
1.00 GOhm x km min. |
| Gegenseitige Capacitance: |
35.0 nF/km nom. |
35.0 nF/km nom. |
| Prüfspannung: |
1.5 kV |
1.5 kV |
| Attenuation: |
| 9.6 |
kHz |
< |
3.0 |
dB/km |
| 38.4 |
kHz |
< |
5.0 |
dB/km |
| 4.0 |
MHz |
< |
25.0 |
dB/km |
| 16.0 |
MHz |
< |
52.0 |
dB/km |
|
| 9.6 |
kHz |
< |
3.0 |
dB/km |
| 38.4 |
kHz |
< |
5.0 |
dB/km |
| 4.0 |
MHz |
< |
25.0 |
dB/km |
| 16.0 |
MHz |
< |
52.0 |
dB/km |
|
Technische Daten
| Gewicht: |
approximately 70.0 kg/km |
approximately 70.0 kg/km |
| Min. Bending Radius (Laying): |
60.0 mm |
60.0 mm |
| Operating Temp.Range, min.: |
- 40 °C |
- 40 °C |
| Operating Temp.Range, max.: |
+70 °C |
+70 °C |
| Caloric Load, approx. value: |
1.53 MJ/m |
1.53 MJ/m |
| Copper Value: |
25.0 kg/km |
25.0 kg/km |
Normen
| Applicable Standards: |
Profibus acc. to DIN 19245 T3 and EN 50170 |
Profibus acc. to DIN 19245 T3 and EN 50170 |
| UL Style: |
CMX 750C (shielded) |
CMX 750C (shielded) |
