A range of single pair bus cables for process and field communication in cell networks. The Profibus protocol has been widely adopted for production and process automation applications providing transmission rates up to 12Mbits.
Statische Seile

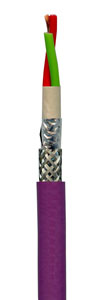

Plain copper conductors 0.64mm (22AWG), foamed PE with a hard skin insulation, synthetic bedding, aluminium foil screen & tinned copper wire braid – 60% optical coverage, thermoplastic or thermosetting sheath.
Technische Informationen
| Core Identifizierung |
Red & Green |
| Betriebstemperatur |
-40°C to +60°C |
| Spannung |
Working : 100V |
| Impedanz |
150 Ω |
| Effektive Kapazität @ 1khz |
28.5nF/m |
| Geschwindigkeit der Vermehrung |
78% |
| Nenn-Dämpfung |
MHz
4
9.6
16
|
dB/100m
22.0
2.5
42.0 |
Dynamic cables
Plain copper conductors 0.25mm² Foamed PE with a hard skin insulation, cores laid up with fillers and a polyester tape, aluminium foil screen & tinned copper wire braid – 60% optical coverage, polyurethane (PUR) sheath.
Technische Informationen
| Core Identifizierung |
Red & Green |
| Betriebstemperatur |
-40°C to +60°C |
| Spannung |
Working : 100V |
| Impedanz |
150 Ω /km |
| Effektive Kapazität @ 1khz |
28.5nF/m |
| Geschwindigkeit der Vermehrung |
78% |
Nenn-Dämpfung |
MHz
4
9.6
16
|
dB/100m
25.0
3.0
53.0 |
Technische Daten
Dirigent Strandung |
Conductor
Resistance |
Material Mantel |
Mantel Farbe |
FastConnect
/Quickstrip
|
Gewicht
Kg/Km |
O/D
mm |
Anwendung |
| Solid |
57.1 |
PVC |
Violet |
Yes |
148 |
8.0 |
Static |
| Solid |
57.1 |
LSHF |
Violet |
Yes |
152 |
8.0 |
Static |
| Solid |
57.1 |
PE |
Black |
No |
213 |
9.5 |
Wet/outdoor static |
| Solid |
57.1 |
PE |
Black |
Yes |
289 |
11.9 |
Static |
| Fine |
84.0 |
PUR |
Violet |
No |
172 |
8.6 |
Dynamic |
| 7 Str |
59.4 |
PVC |
Violet |
No |
149 |
8.0 |
Euro type static |
| Solid |
57.1 |
FEP |
Violet |
No |
64 |
7.2 |
High Temperature |
